BD Max PCR Machine

BD Max PCR Machine

£15,000 (GBP)

Available quantity: 2

Walton-on-the-Naze, United Kingdom

orCall +44 (0) 20 8123 1082

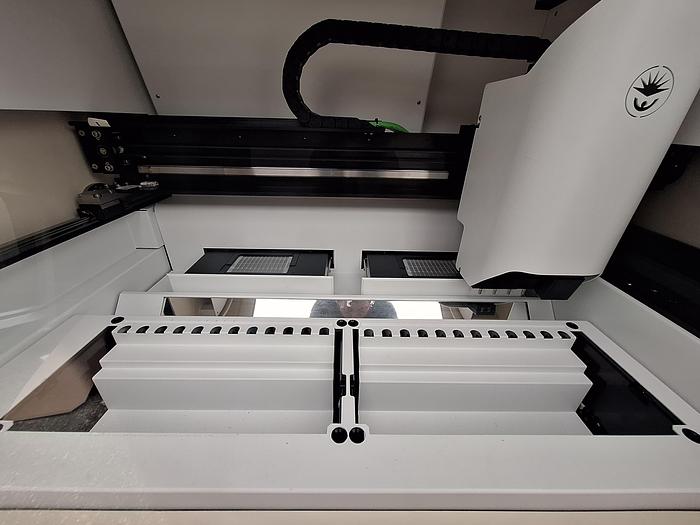

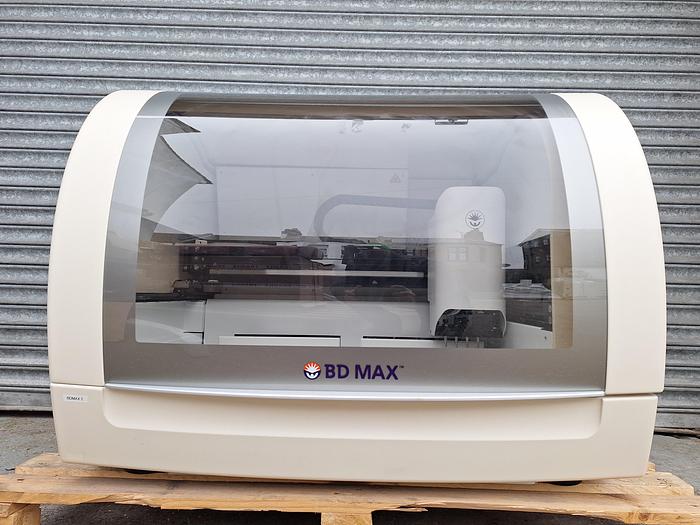

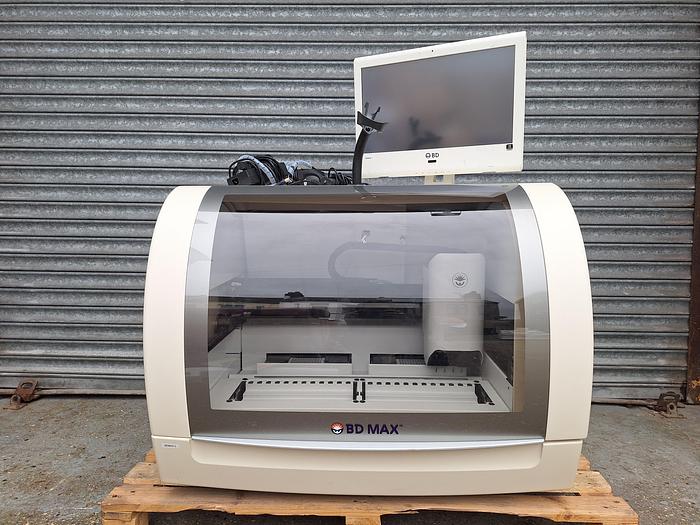

This listing for a 1 of 2 BD Max PCR Machine

BD MAX System is intended for in vitro diagnostic (IVD) use in performing FDA cleared or approved nucleic acid testing in clinical laboratories. It is capable of automated extraction and purification of nucleic acids from multiple specimen types, as well as the automated amplification and detection of target nucleic acid sequences by fluorescence-based PCR.

The BD MAX System is capable of:

Independent nucleic acid extraction and purification with built in extractor.

PCR amplification using thermal cycling across 24 lanes

Real time detection of products of amplification

Identification of each Sample Buffer tube by external barcode reader

Work List verification by internal barcode reader

Fluorescence detection at up to five wavelengths, allowing multiplex reactions by Cycle threshold (Ct) call, or multiplex reactions by melt analysis

Qualitative, quantitative and melt sample analysis


Integrated and fully-automated extraction and thermocycling steps

Processes and analyzes up to 24 specimens per run

On-board lysis and extraction with pre-filled reagent strips

Real-time PCR with two 24-lane microfluidic PCR readers

Dedicated multi-color optics including: 475/520, 530/565, 585/630, 630/665, 680/715

Consistent results through standardized workflow and protocols

Rapidly expanding menu and open-system options to help address emerging testing needs

Less than one minute of hands on time per sample

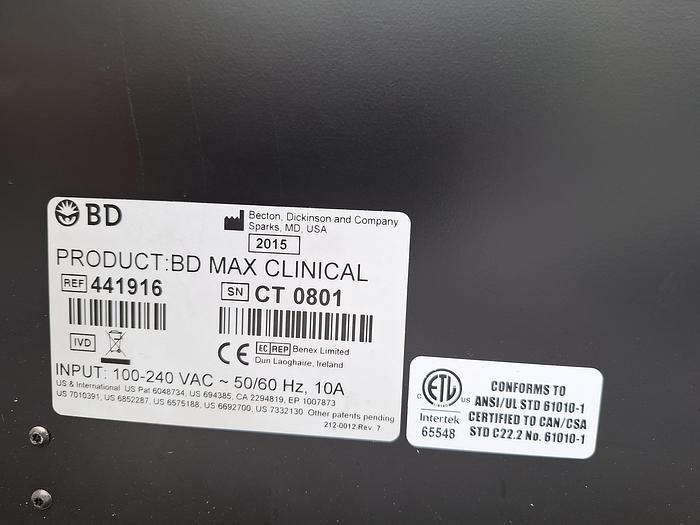

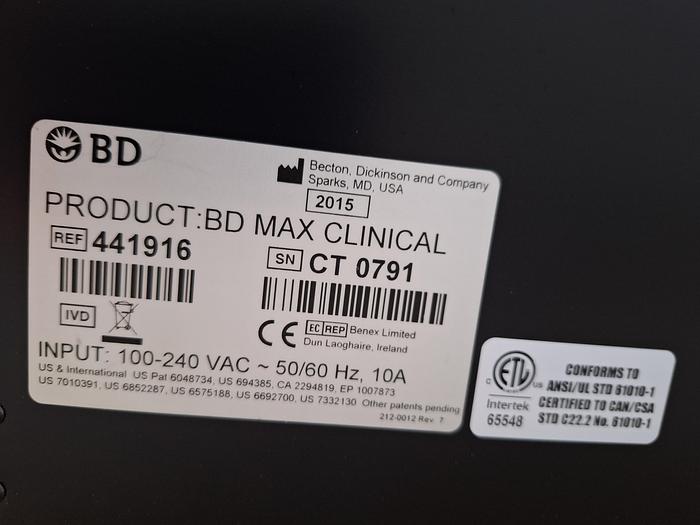

Electrical Requirements

100 to 240 V, 50/60 Hz, 10 A, 300 VA Max



250 lb.


28.5 in.


37 in.


29.7 in.
