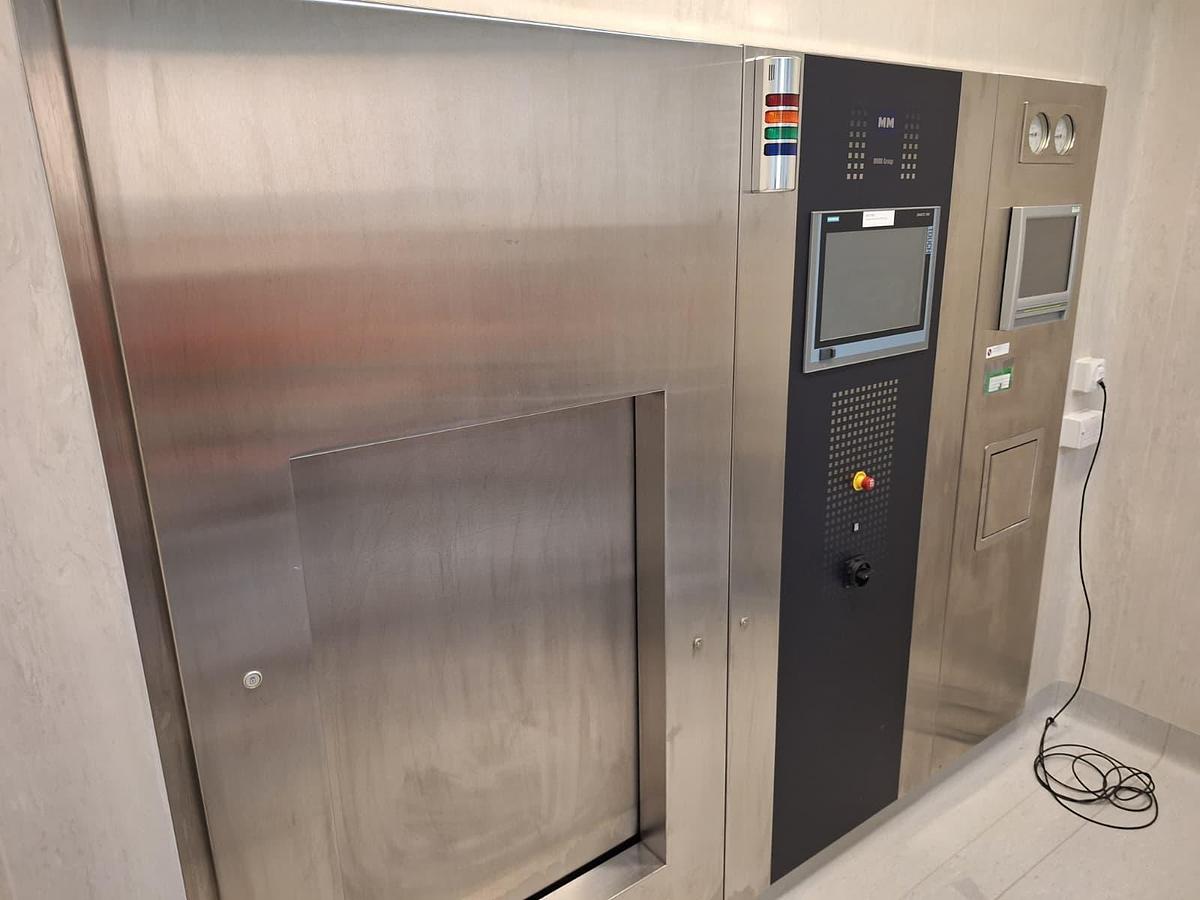

MM Group Vakulab HL Medical Autoclave

This listing is for the MM Group Vakulab HL Medical Autoclave.

The unit is in full working condition and is ready for immediate use.

Overview

The Vakulab HL autoclave from MM Group Medical is a high-performance, GMP-compliant sterilizer designed for the safe, reliable, and validated sterilization of laboratory instruments, equipment, and materials. Specifically engineered for use in pharmaceutical manufacturing, biotechnology facilities, and research laboratories, the Vakulab HL combines advanced vacuum-assisted steam sterilization with robust stainless steel construction to ensure consistent results in even the most demanding applications.

Key Features

Advanced Steam Sterilization

Pre- and Post-Vacuum Cycles: Ensures efficient steam penetration and rapid drying

Optimized Steam Distribution: Uniform sterilization across all load types

Programmable Cycles: Fully adjustable parameters for different sterilization needs

GMP & Cleanroom Ready

Double-Door Pass-Through Design (optional): For installation between clean and non-clean areas

Stainless Steel Chamber & Piping: High-grade AISI 316L for corrosion resistance and hygienic operation

Integrated Monitoring: Real-time cycle control with full batch documentation capability

Operational Safety & Control

User-Friendly HMI: Touchscreen interface for programming and monitoring

Automatic Door Operation: With safety interlocks to prevent accidental opening under pressure

Built-In Diagnostics: Self-check functions for preventive maintenance

Technical Specifications

The Vakulab HL is a vacuum-assisted steam sterilizer available in multiple chamber volumes, typically ranging from 300 to 1,000 liters. The sterilization process operates at temperatures between 121 °C and 134 °C, controlled via a PLC-based system with an intuitive touchscreen human-machine interface (HMI). The chamber is constructed from AISI 316L stainless steel, ensuring corrosion resistance and compliance with GMP hygienic standards.

A water-ring or liquid-ring vacuum pump enables pre-vacuum and post-vacuum phases for thorough air removal and effective drying. Door configurations can be single or double-door in either sliding or hinged formats, with safety interlocks to prevent opening under pressure. The autoclave requires standard utility connections for steam, water, compressed air, and electricity. It is designed to meet EN 285, PED, ISO 9001, and GMP compliance requirements, and can be validated to ISO 17665 sterilization standards.

Applications

Pharmaceutical Manufacturing: Sterilization of equipment, components, and containers

Biotechnology: Sterilization of fermentation vessels, culture media, and instruments

Research Laboratories: Sterilization of glassware, tools, and lab consumables

Hospitals & Clinical Settings: Safe sterilization of surgical instruments and textiles

System Components

High-grade stainless steel chamber with polished finish

Vacuum pump system for pre- and post-cycle air removal

Steam generation and distribution system

Control panel with PLC and HMI touchscreen

Integrated temperature and pressure sensors for validation

Quality & Compliance

Manufactured in accordance with GMP guidelines

Complies with EN 285 and ISO 17665 sterilization standards

Full FAT/SAT/IQ/OQ/PQ support for validation in regulated environments

Designed for integration into cleanroom and production facilities

Benefits

Consistent, Validated Sterilization for a wide range of load types

Flexible Configurations to meet site-specific and regulatory needs

Long-Term Reliability thanks to robust materials and precision engineering

Full Data Traceability for GMP compliance and audit readiness

Energy-Efficient Operation with optimized steam and water usage
