Professional Water Treatment Solution for Critical Applications

Product Overview

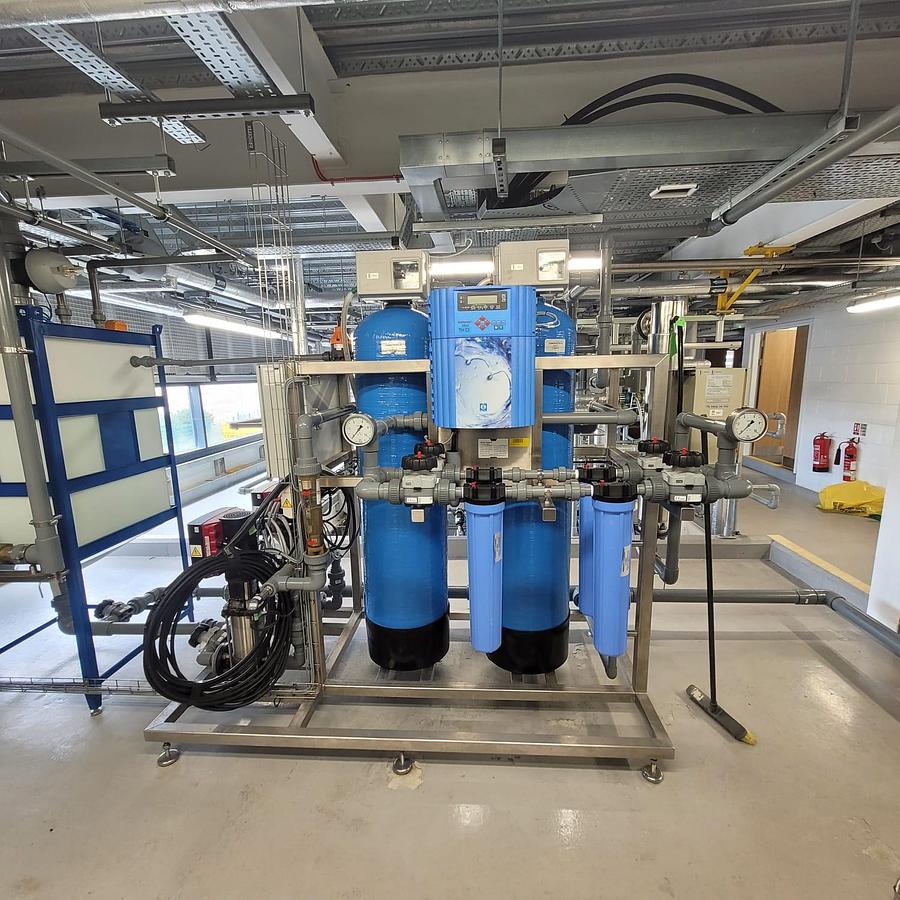

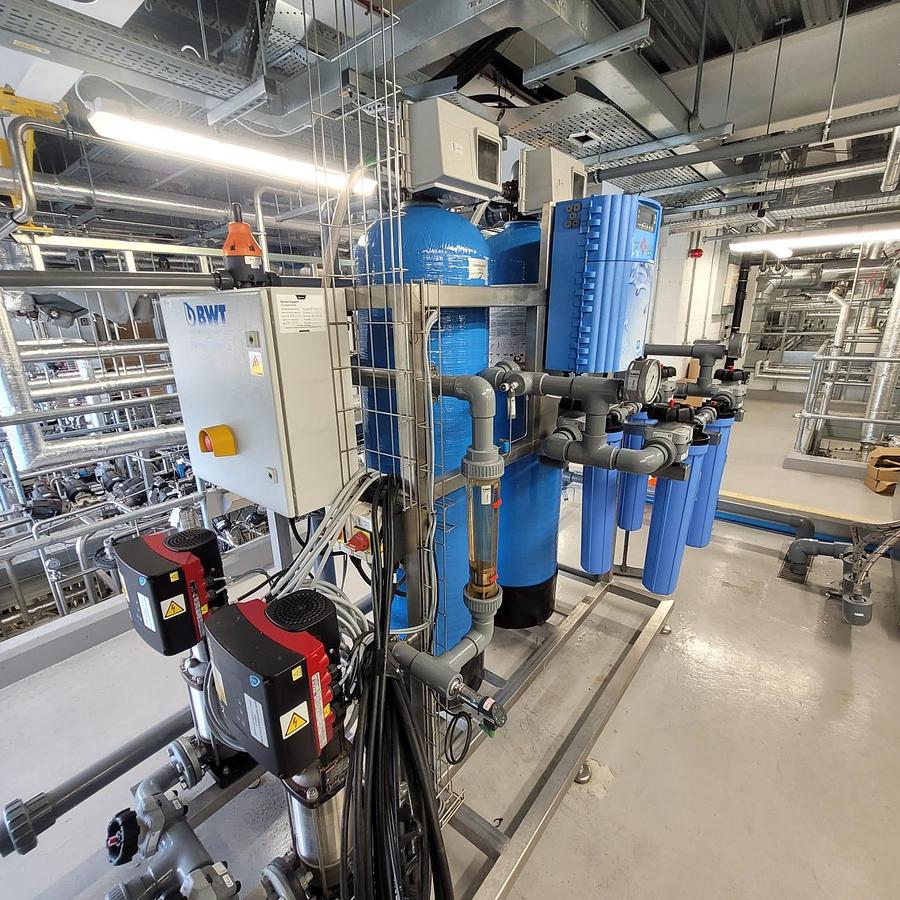

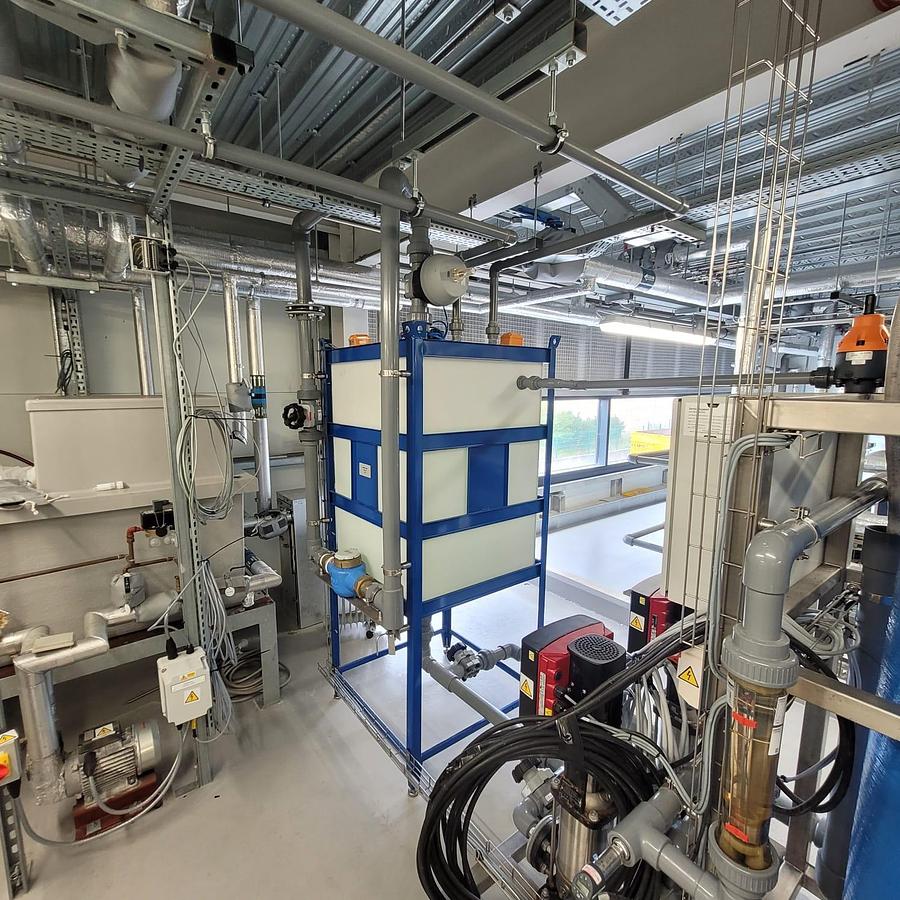

The BWT Carbon Filter System is a state-of-the-art, skid-mounted water treatment solution specifically engineered for pharmaceutical, biotech, food & beverage, and industrial applications. This robust system delivers reliable chlorine, chloramine, and organic contaminant removal through advanced activated carbon filtration technology.

Key Features

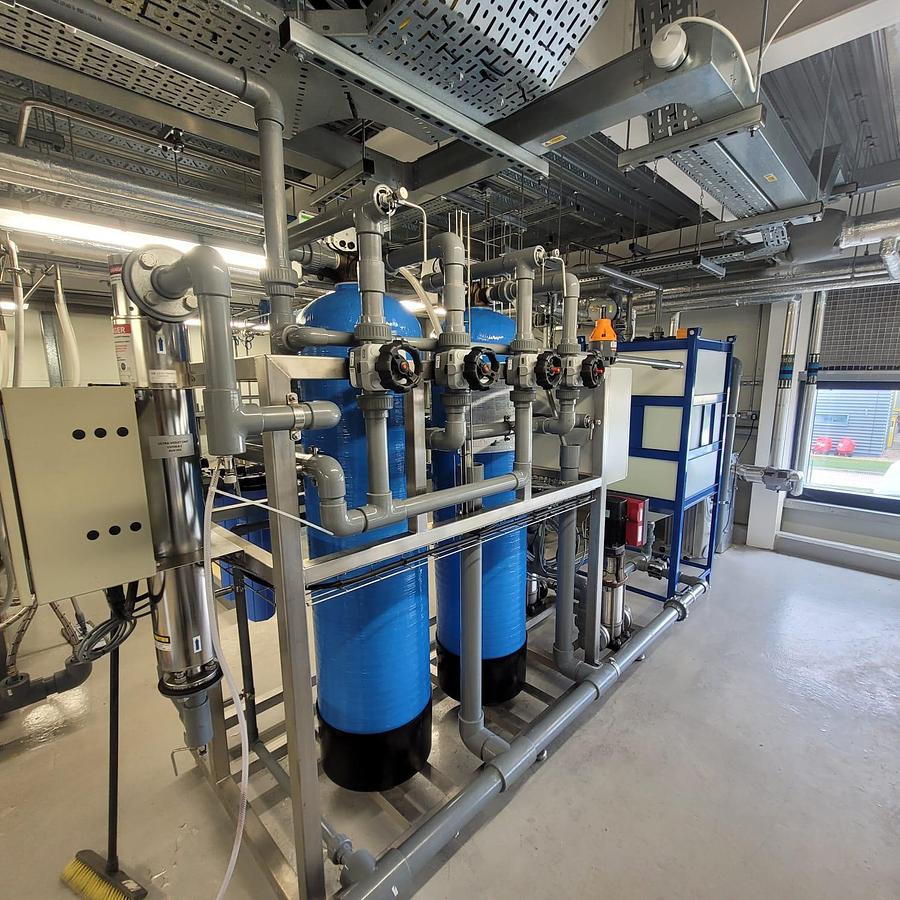

Multi-Vessel Carbon Filtration

Multiple large-capacity blue pressure vessels

High-grade activated carbon media for superior adsorption

Redundant configuration ensures continuous operation

Extended media life through automated maintenance cycles

Advanced Pre-Filtration

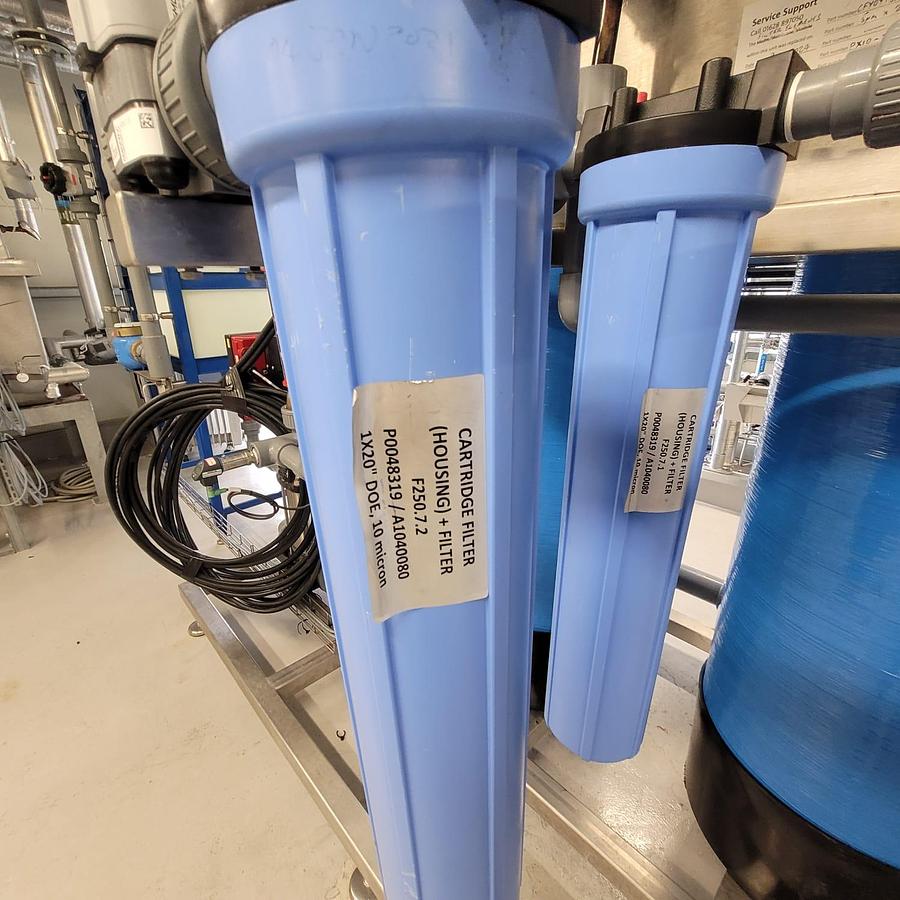

20-inch standard cartridge filter housings

Flexible micron rating selection

Protects carbon media from particulate fouling

Easy cartridge changeout design

Intelligent Automation

Automatic multi-port valves with position indicators

Programmable backwash and regeneration cycles

Real-time chlorine monitoring with Testomat 2000 TH CI analyzer

Minimal operator intervention required

Pharmaceutical-Grade Construction

BWT "Pharma & Biotech" certified control panel

Stainless steel skid frame for GMP compliance

Industrial-grade PVC piping and manifold system

Professional cable management and organization

Redundant Pump Configuration

Twin pump setup for maximum reliability

Continuous operation during maintenance

Variable flow control capabilities

Low power consumption design

Technical Specifications

The BWT Carbon Filter System operates with feed water temperatures between 5–25°C and requires an inlet pressure of 4–6 bar for optimal performance.

The system is configured for electrical supply of 230/400V, 50Hz with low power consumption supporting automated valve operation and monitoring functions.

Each cartridge filter housing accommodates 20-inch standard cartridges, allowing flexibility in micron rating selection based on specific application requirements.

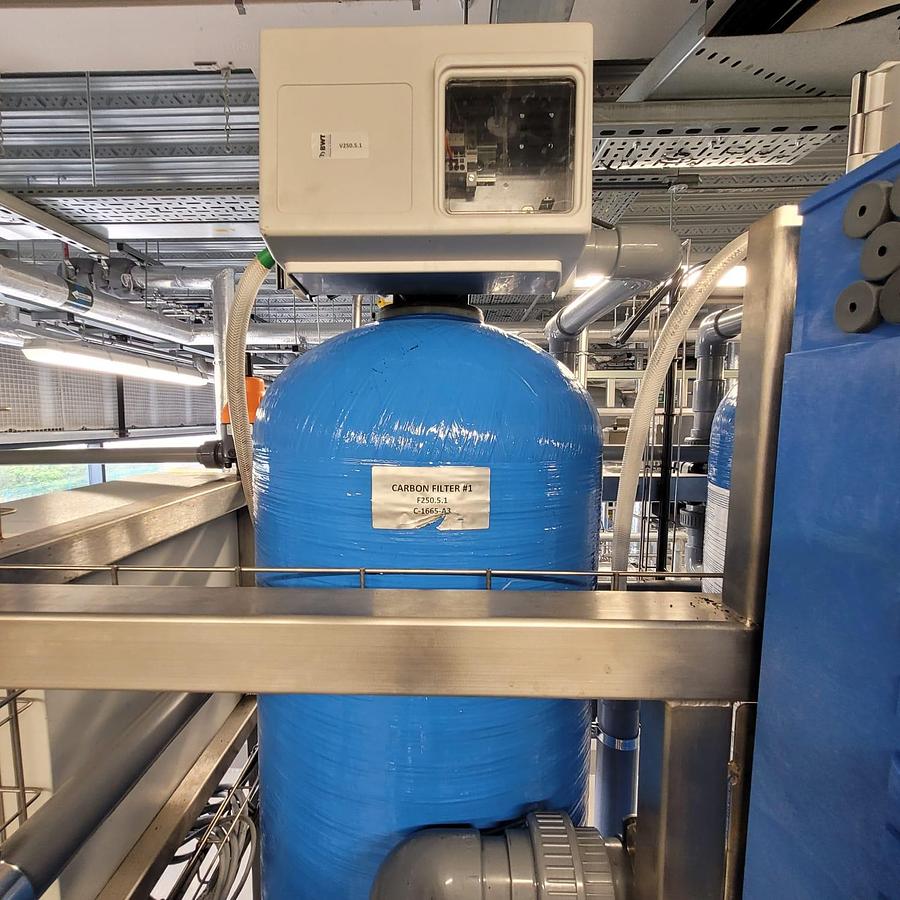

The pressure vessels are constructed from durable pressure-rated fiberglass with a robust stainless steel skid frame ensuring long-term stability and GMP compliance.

All process piping utilizes industrial-grade PVC materials for safe and reliable flow distribution.

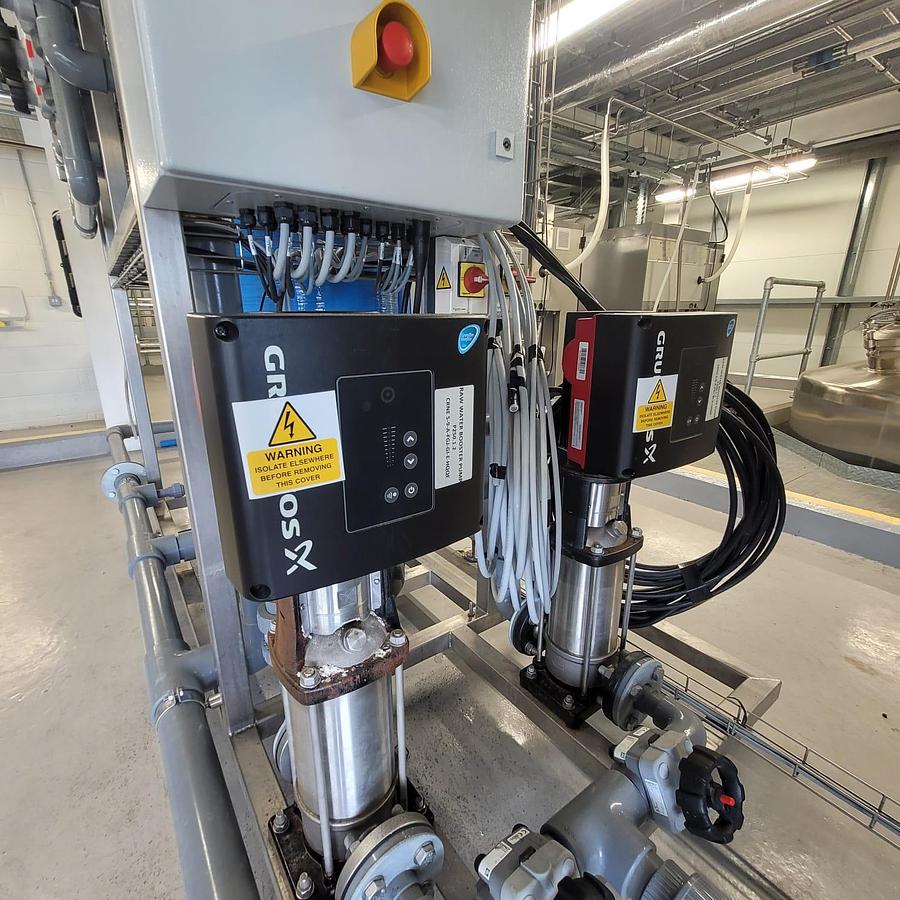

The system incorporates Grundfos multistage pumps in a redundant configuration for maximum reliability and efficient water transfer.

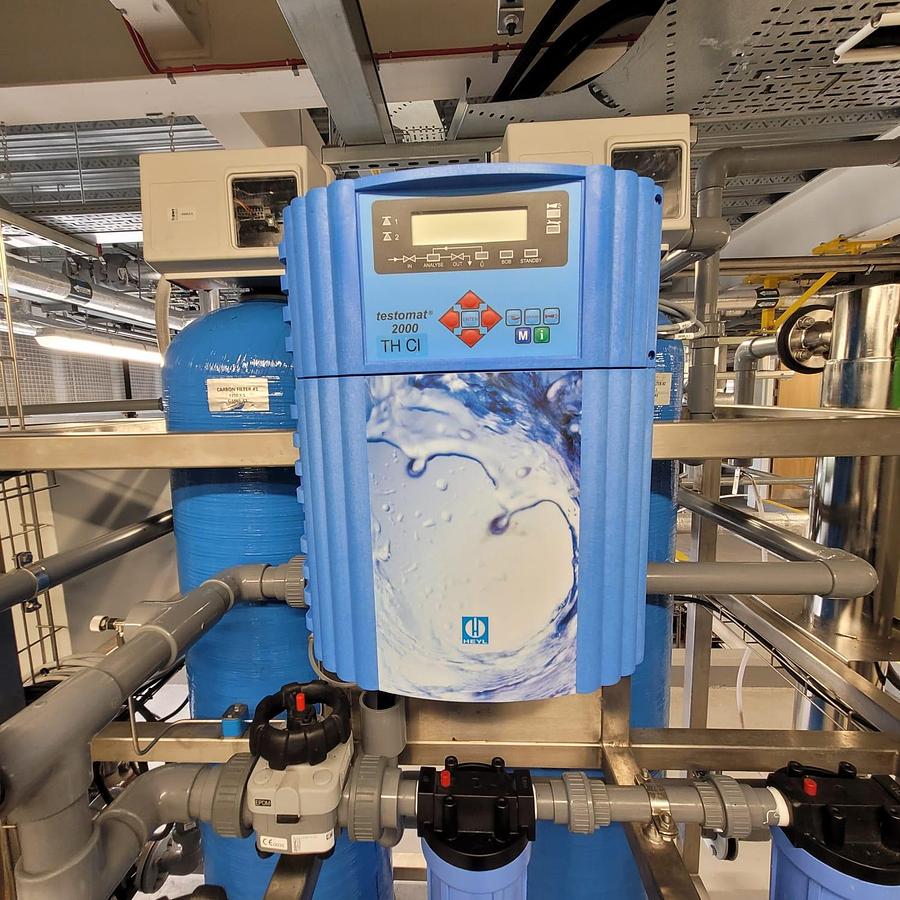

Real-time water quality monitoring is provided by the Testomat 2000 TH CI analyzer, delivering continuous chlorine measurement and verification of carbon filter performance.

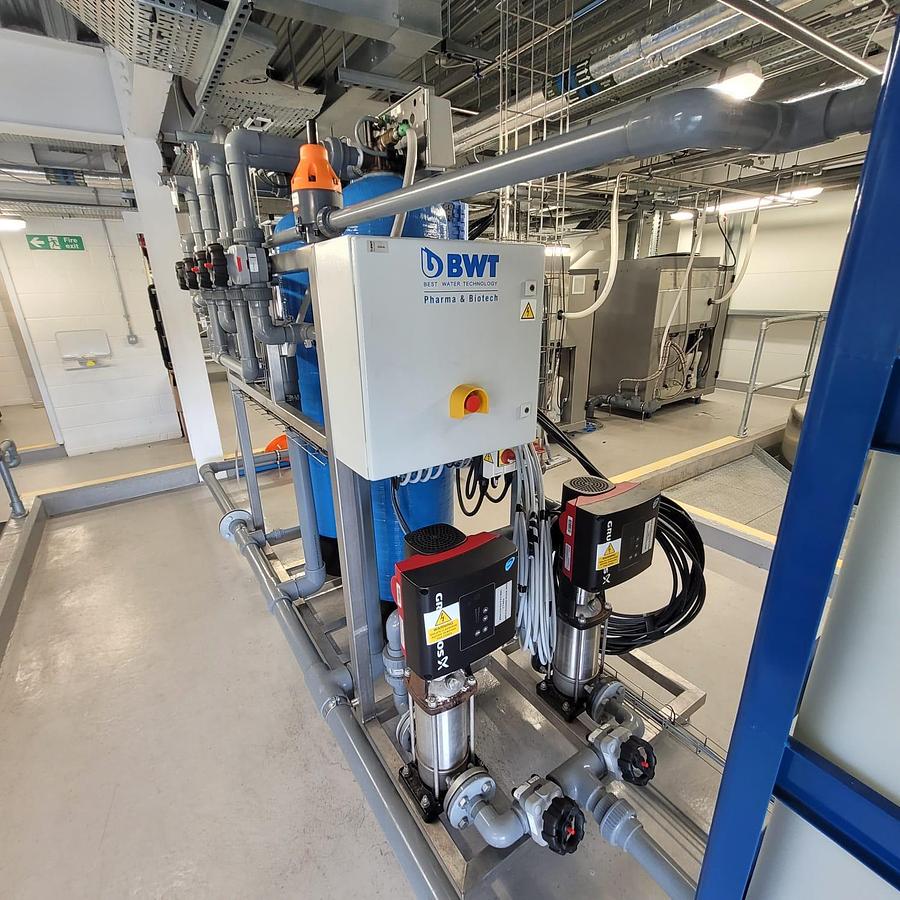

The comprehensive BWT Pharma & Biotech control panel features an automated control system with HMI interface, providing system monitoring, alarm management, and operator interaction capabilities for seamless integration into existing facility operations.
