Belimed PST 9-6-12 HS2 Steam Sterilizer

This listing is for a Belimed PST 11-6-18 HS2 Steam Sterilizer.

The unit is in excellent working condition and ready for immediate release.

The Belimed PST 11-6-18 HS2 is a high-capacity pharmaceutical autoclave designed for saturated steam sterilization of laboratory and production equipment, including heat- and moisture-stable porous and non-porous loads.

Equipped with an integrated Filter Integrity System (FIS), it ensures reliable sterilization and validation compliance in regulated environments.

Engineered by Belimed Life Science in Germany, this system delivers precise temperature control, high process reliability, and full compliance with GMP/cGMP standards, making it ideal for research, pilot, and GMP production facilities.

The HS2 configuration features a double-door chamber, water-jacket cooling, vacuum-assisted drying, and a user-friendly B-Touch interface with integrated process control. It is optimized for efficient sterilization cycles with minimal operator intervention.

Key Features

• GMP-ready design supporting pharmaceutical-grade sterilization processes (6050/6065)
• Integrated Filter Integrity System (FIS) for real-time monitoring and validation compliance
• User-friendly B-Touch touchscreen interface with Siemens WinCC Unified or Rockwell FT Optix
• Water-jacket cooling and vacuum drying for rapid cooling and effective drying of chamber loads

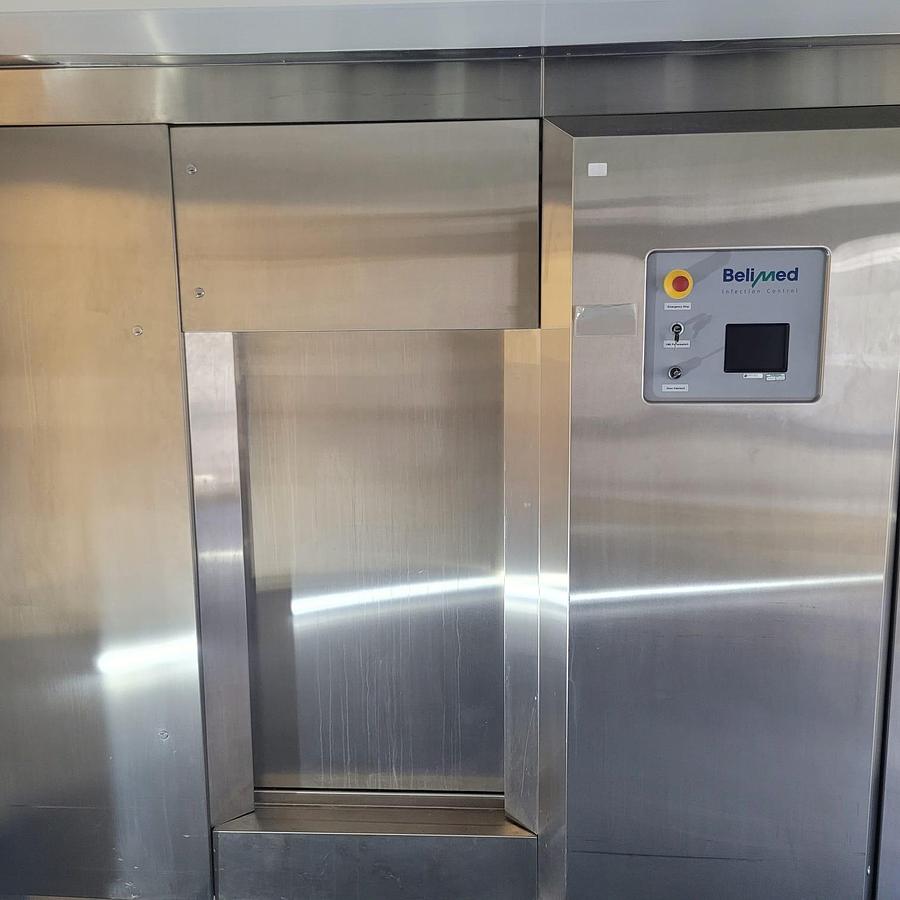

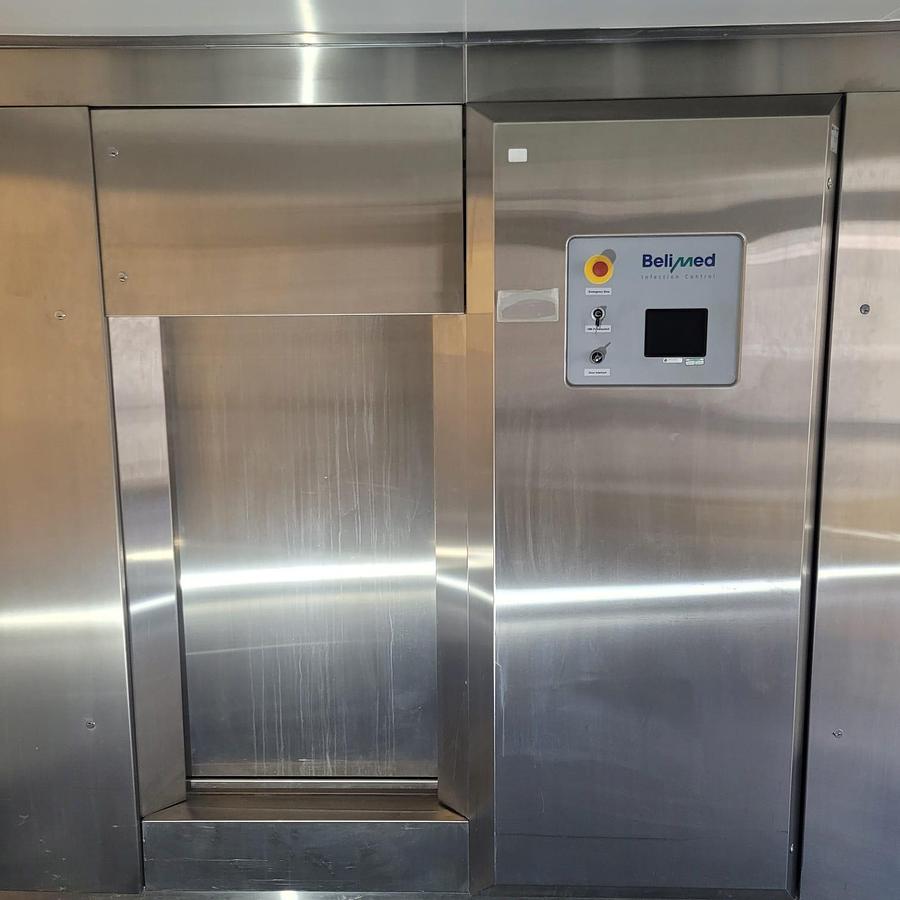

• Double-door HS2 configuration optimized for ergonomic loading and unloading
• High-quality AISI 316L stainless steel construction with hygienic surface finishes (Ra < 0.8 µm)
• Automated operation with redundant sensors and independent measurement circuits for reliable sterilization
• Compliance with GAMP5, 21 CFR Part 11, Annex 11, and optional ASME BPE certification
• Supports modular accessories including trolleys, batch carts, perforated or wire-mesh shelves, and cleanroom integration

Technical Specifications

• Manufacturer: Belimed Life Science (Germany)
• Model: PST 11-6-18 HS2
• Sterilization Processes: 6050 / 6065 (Steam, Pre-Vacuum, Gravity)
• Filter Integrity System (FIS): Yes

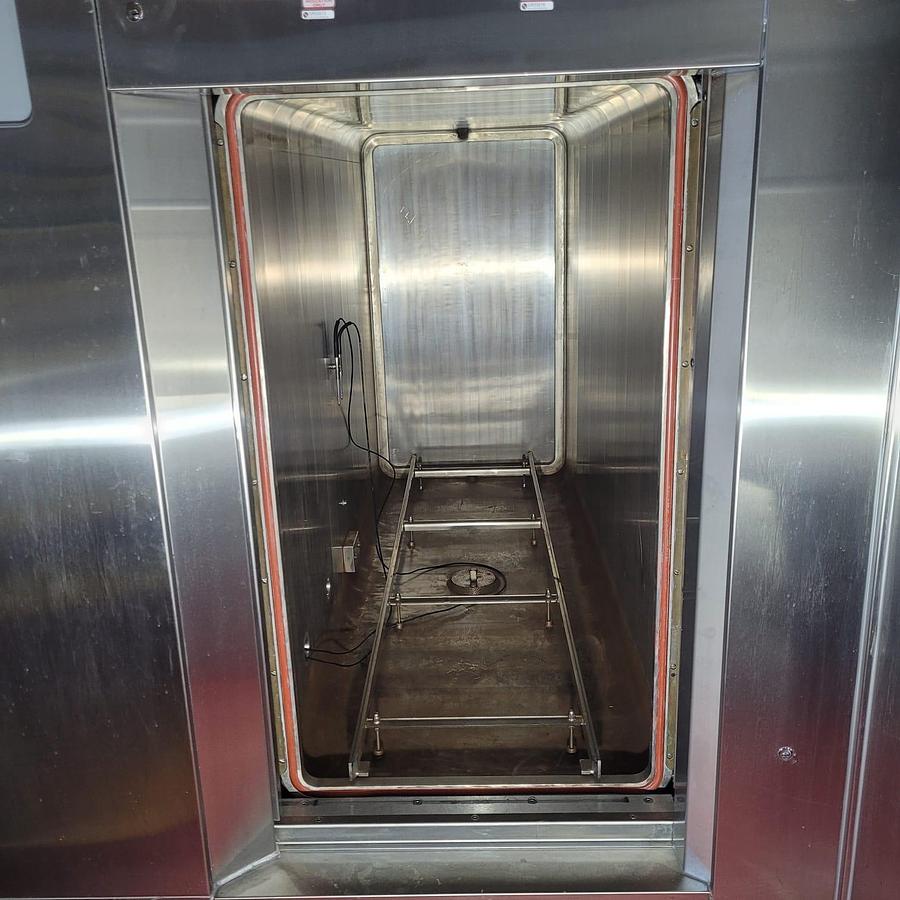

• Chamber Dimensions (W × D × H): 1200 × 600 × 1800 mm
• Usable Chamber Volume: 1,296 L
• External Dimensions (H × W × D): 2100 × 2350 × 1910 mm
• Weight: Approximately 1,300 kg
• Chamber Material: AISI 316L Stainless Steel
• Surface Finish: Ra < 0.8 µm (≤ 0.6 µm optional)
• Door Type: Double-door HS2
• Loading Type: Ground loader (GR)
• Cooling System: Water-jacket cooling
• Vacuum System: Integrated water-ring vacuum pump with optional water recovery

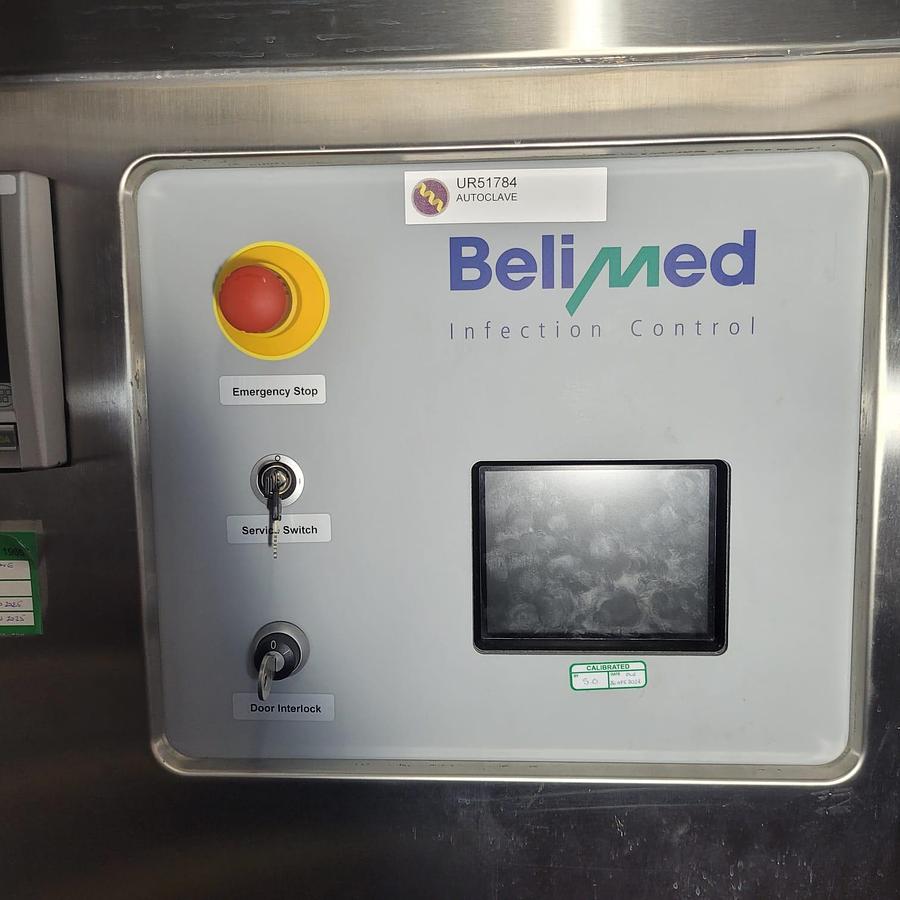

• Control System: B-Touch interface with PLC

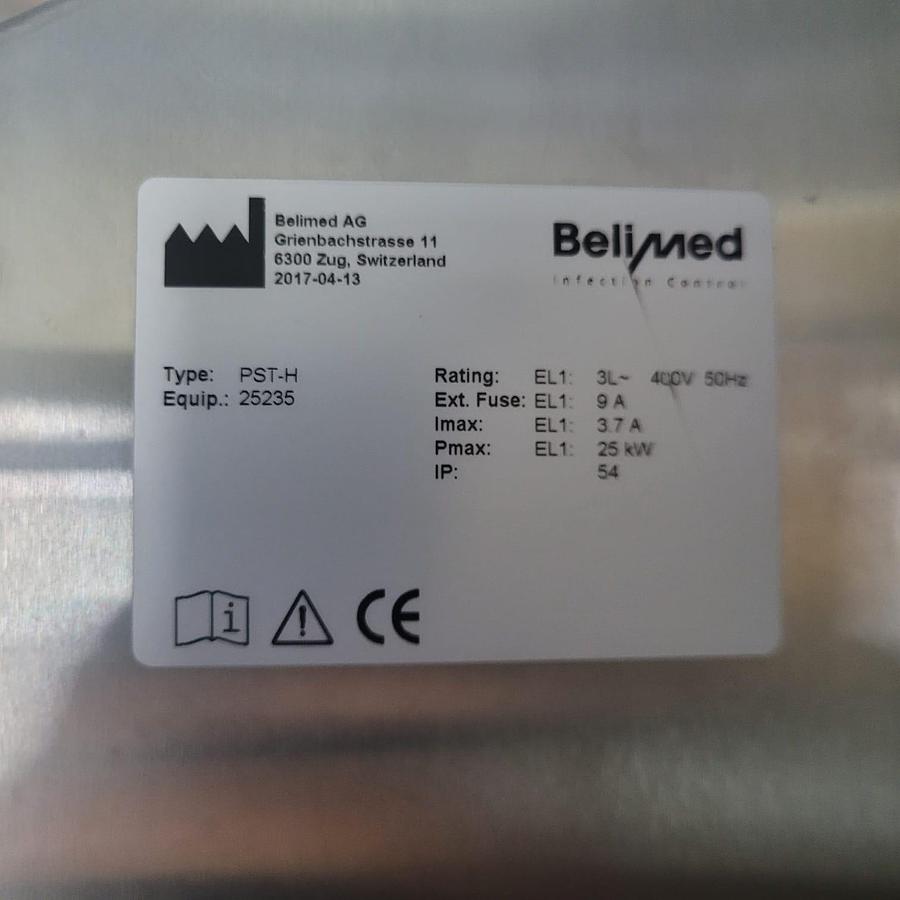

• Electrical Supply: 400 V / 50 Hz (other voltages optional)
• Compliance: GMP / cGMP, 21 CFR Part 11, Annex 11, ASME BPE options
• Year of Manufacture: Available on request
• Serial Number: Available on request

Applications

Ideal for terminal sterilization in pharmaceutical and biotechnology industries, including:

• Sterilization of laboratory glassware and equipment
• Sterilization of production equipment and components
• Sterilization of liquids in open containers
• Sterilization of porous and non-porous loads
