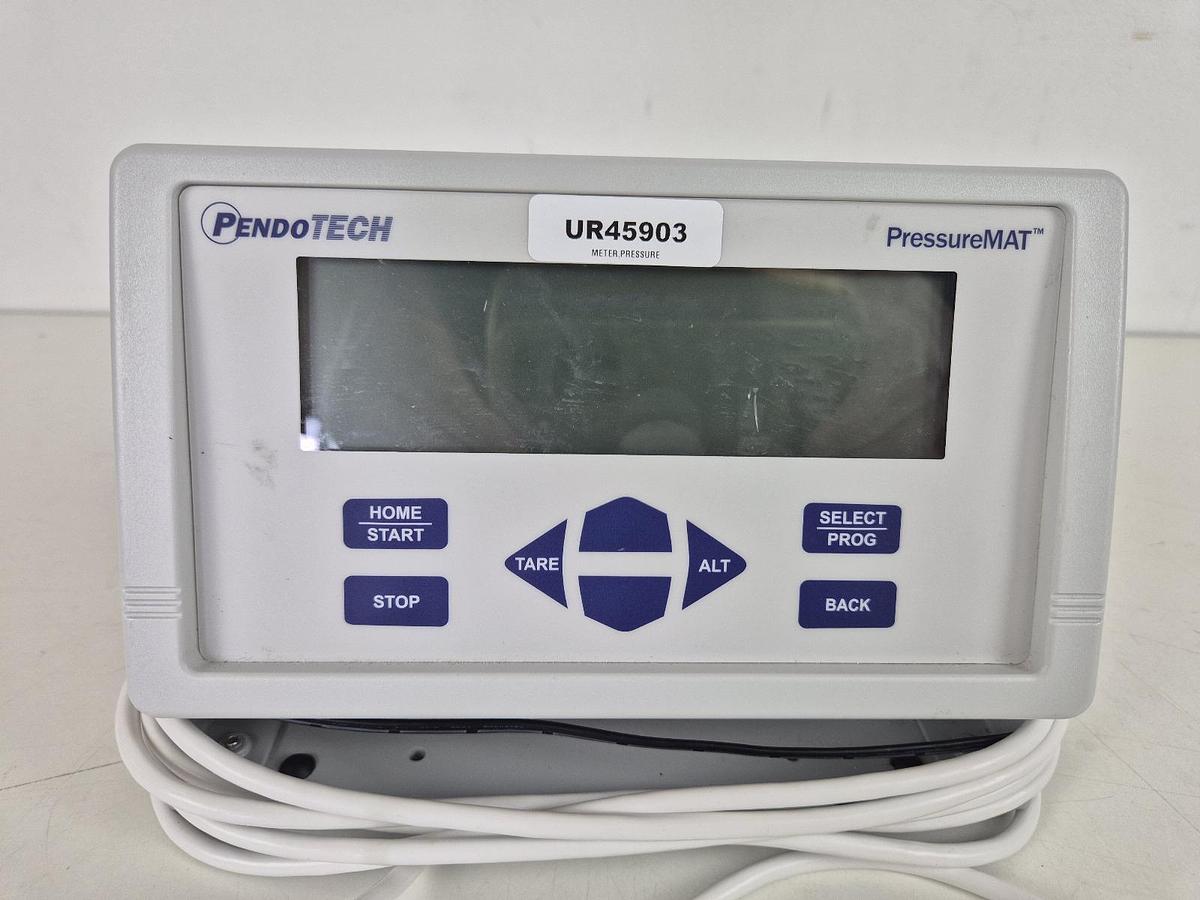

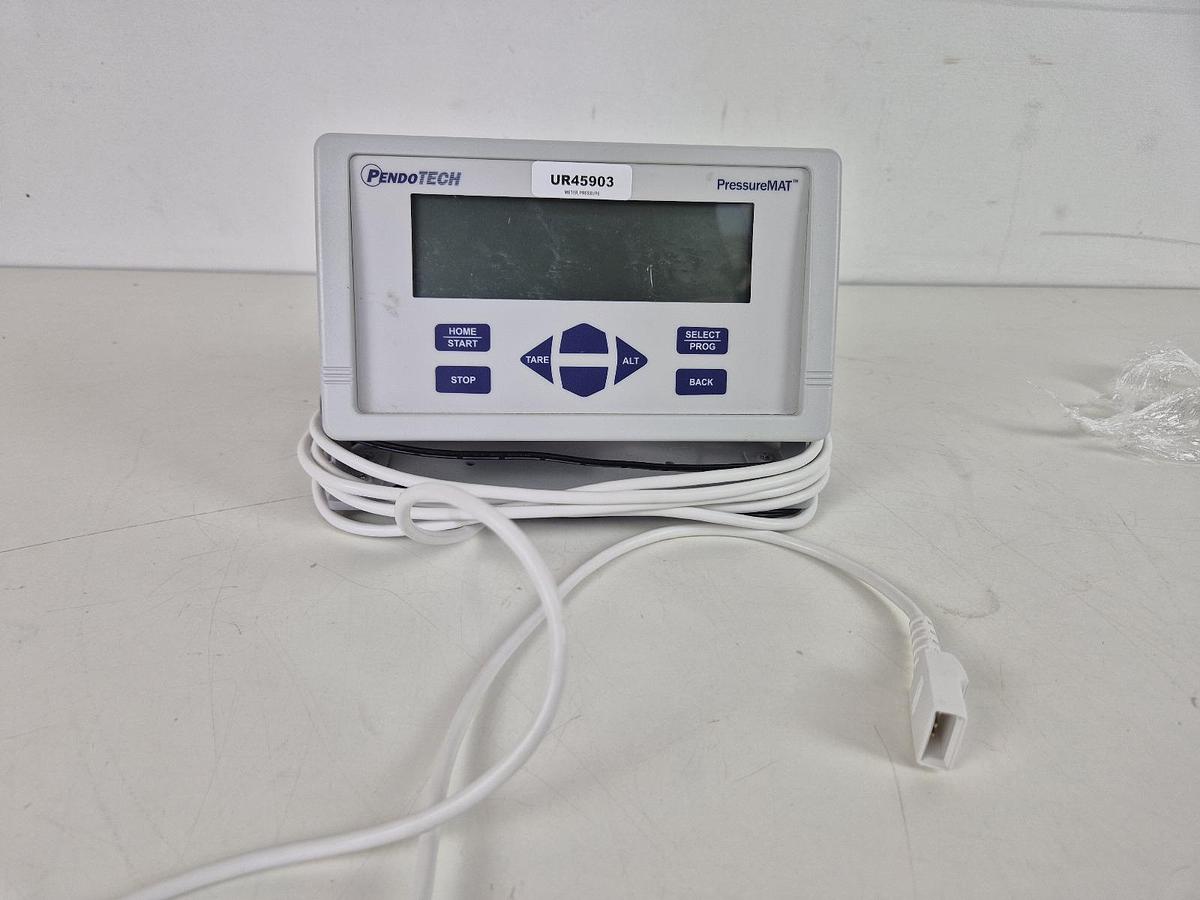

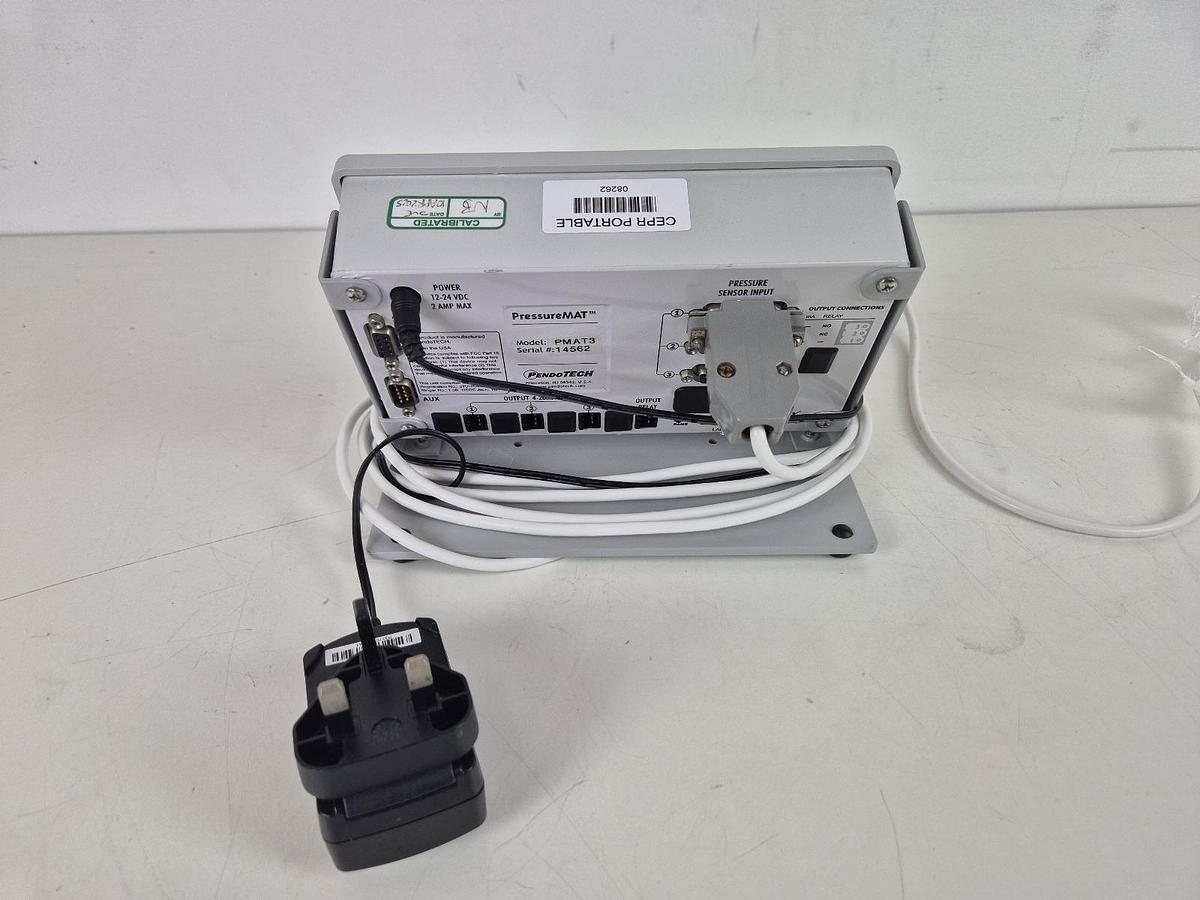

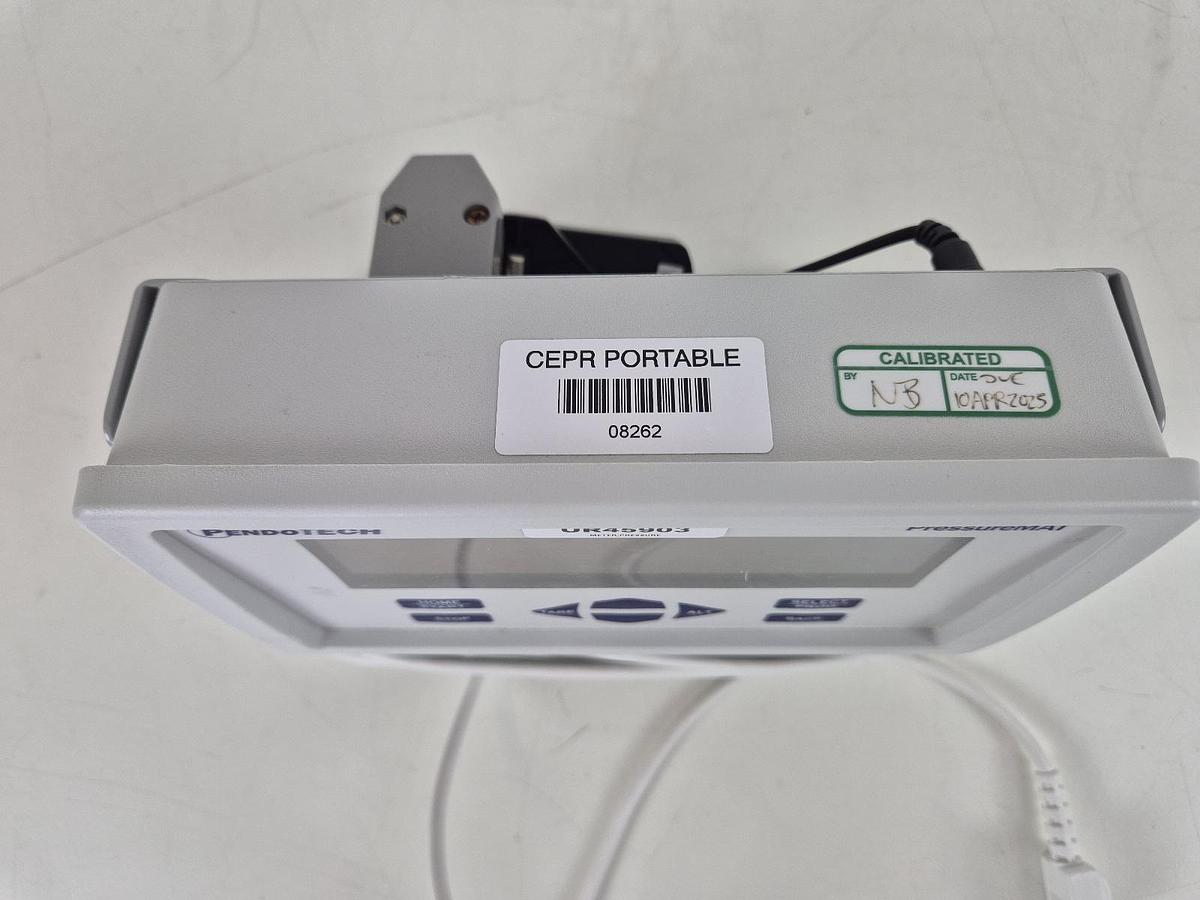

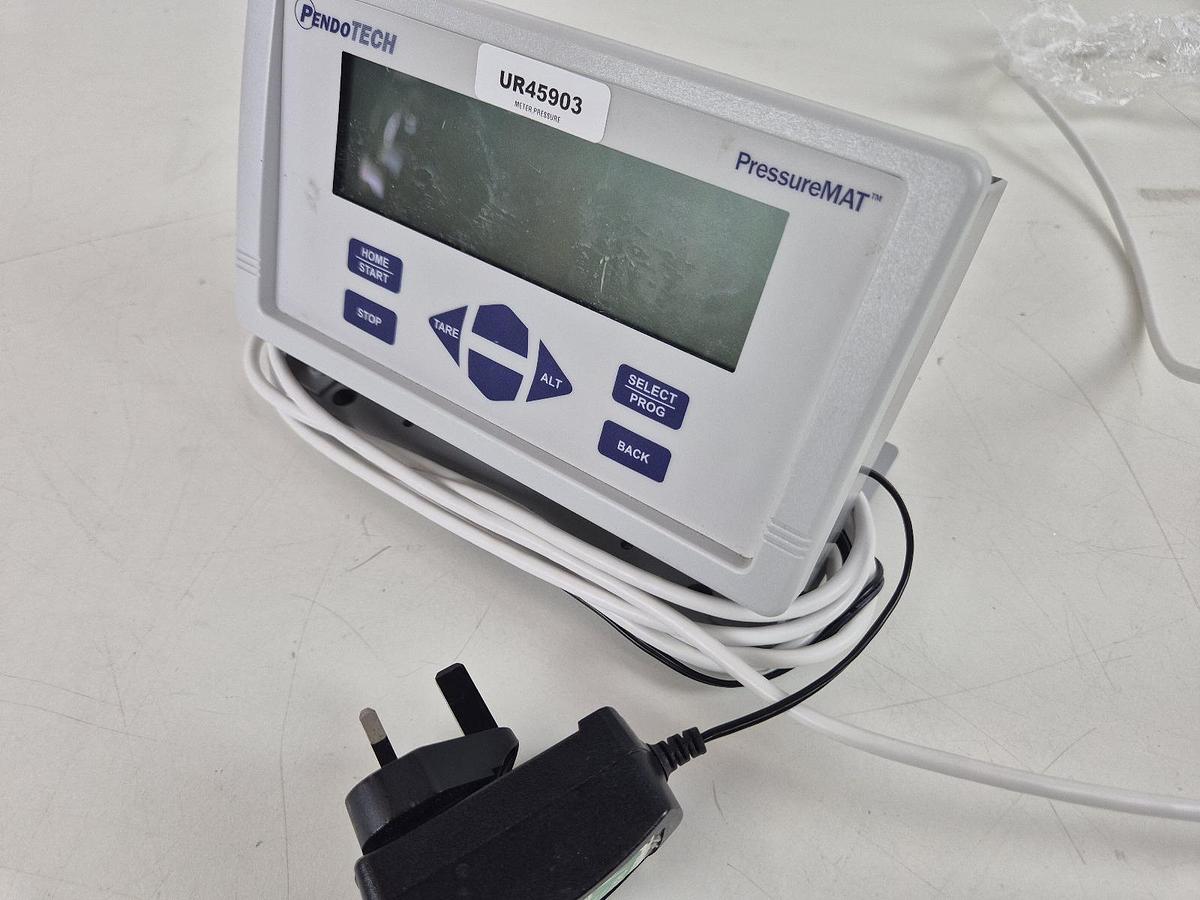

Pendotech PMAT3 Pressure Mat Sensor Monitor

This listing is for the Pendotech PMAT3 Pressure Mat Sensor Monitor

The unit is in full working condition and is ready for immediate use

The PendoTECH PressureMAT (PMA23/PMAT) is a dedicated pressure monitor, alarm, and transmitter designed specifically for use with PendoTECH’s single-use pressure sensors in biopharmaceutical and laboratory environments. Here's a breakdown of its key functions and features:

What It Does

Monitor: Displays real-time pressure readings (range from approximately –7 to 75 psi, or corresponding bar values) on a user-friendly backlit LCD for applications such as filtration, chromatography, and bioreactor pressure monitoring

Alarm: Users can configure minimum and maximum pressure set-points. If readings fall outside these thresholds, the device triggers alarms—via on-screen warnings, audio alerts, and relay outputs to control external pumps or valves

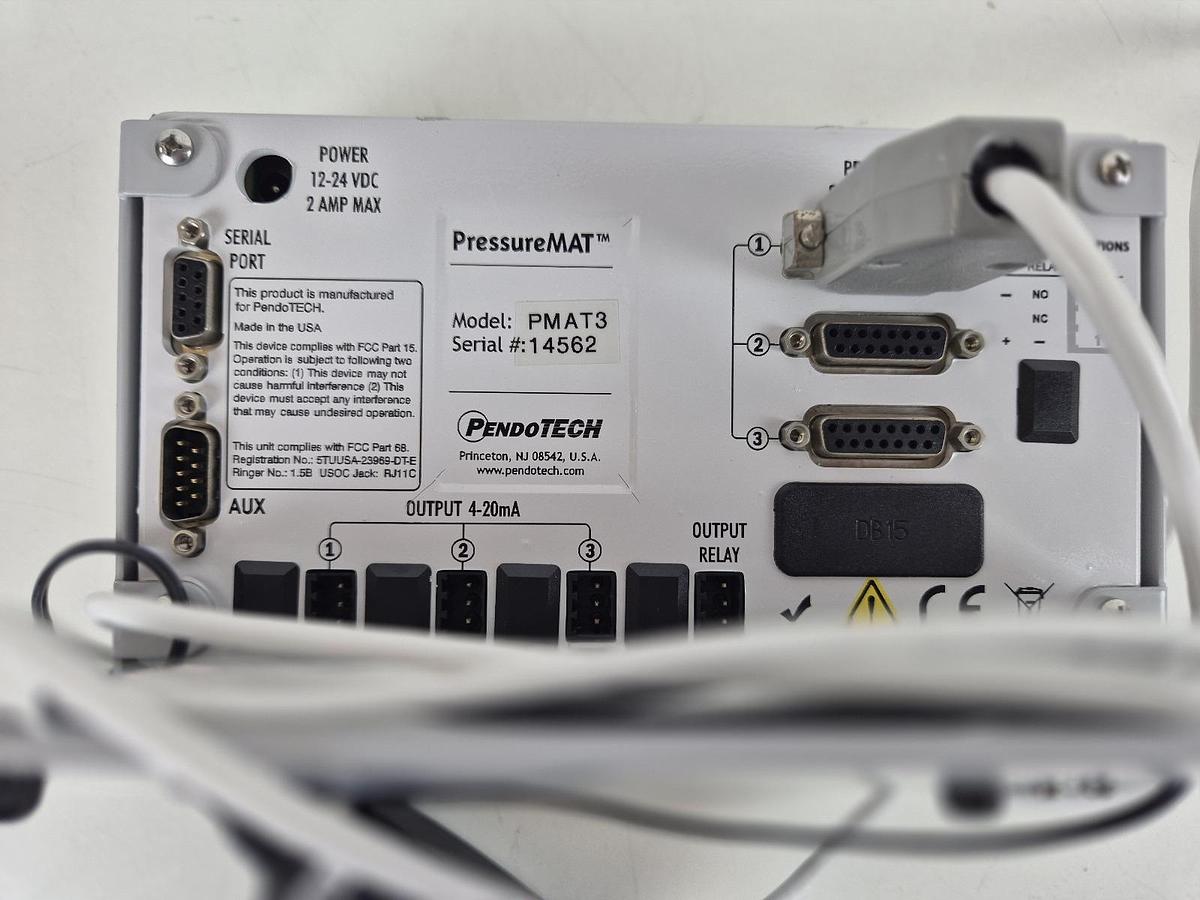

Transmitter: Delivers analog output signals (4–20 mA) and RS‑232 data outputs for integration into process control systems or PCs. Optional internal data logging may also be available

Models & Capabilities

Standard Units: Versions available for 1 to 4 pressure sensor inputs.

High-Resolution (HR): Tailored for low-pressure applications, offering up to 10× better precision

PLUS Series: More advanced models (e.g., PMAT2P, PMAT3P) support additional functionalities like flow meter inputs and total flow measurement, plus external analog input and broader integration options
