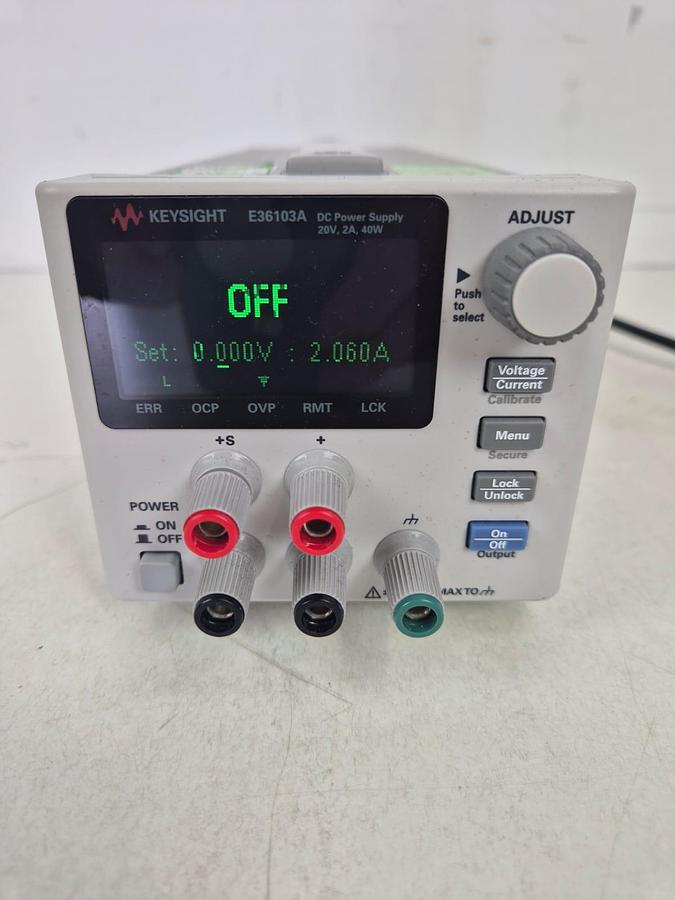

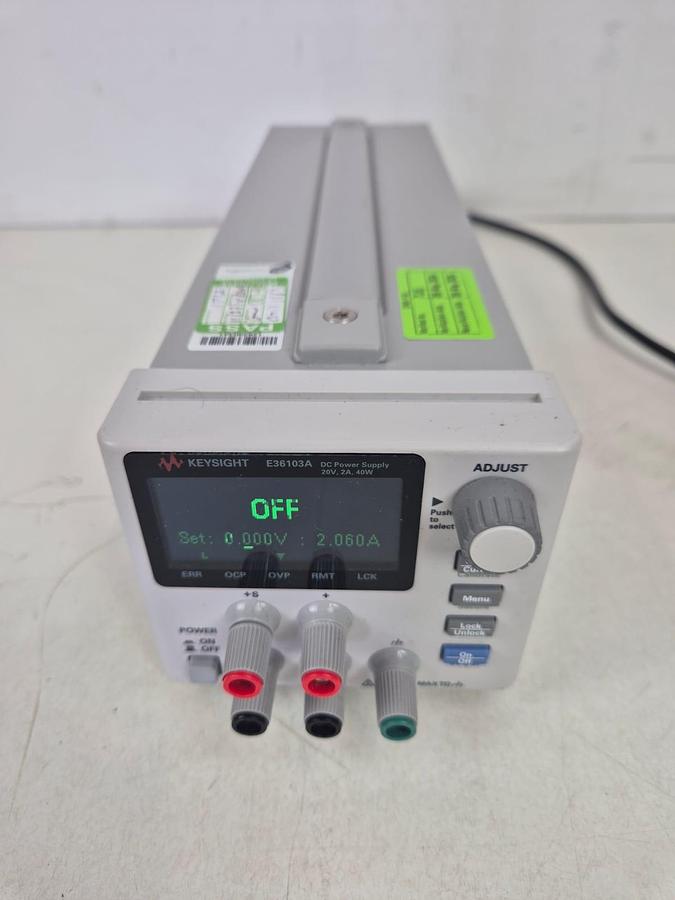

Agilent Keysight E36103ADC Power Supply

This listing is for One Agilent Keysight E36103ADC Power Supply (More Available)

These unit is are all in full working condition and is ready for immediate use

Overview: Keysight E36103

Model: E36103 DC Power Supply

Output: 20 V, 2 A, 40 W

Successor to the older E36103A, which is now obsolete

Key Features:

High programming accuracy:

Voltage: ±(0.05% + 7 mV)

Current: ±(0.05% + 1 mA)

Ripple & noise:

Voltage: 0.8 mV rms, 15 mV peak-to-peak

Current: ~1 mA rms

Keysight Technologies

Readback accuracy:

Voltage: ±(0.05% + 5 mV)

Current: ±(0.05% + 1 mA)

Keysight Technologies

Compact form factor:

2U ¼‑rack width, compact bench size with 3.7 kg weight

Farnell UK

Display & controls:

High-contrast OLED screen visible from various angles

Intuitive rotary knob and front-panel interface for quick digit‑by‑digit adjustments

Connectivity:

USB and LAN (LXI Core)

Supports BenchVue for intuitive control, data logging, and automation

Protection features:

Overvoltage, overcurrent, and overtemperature safeguards included
