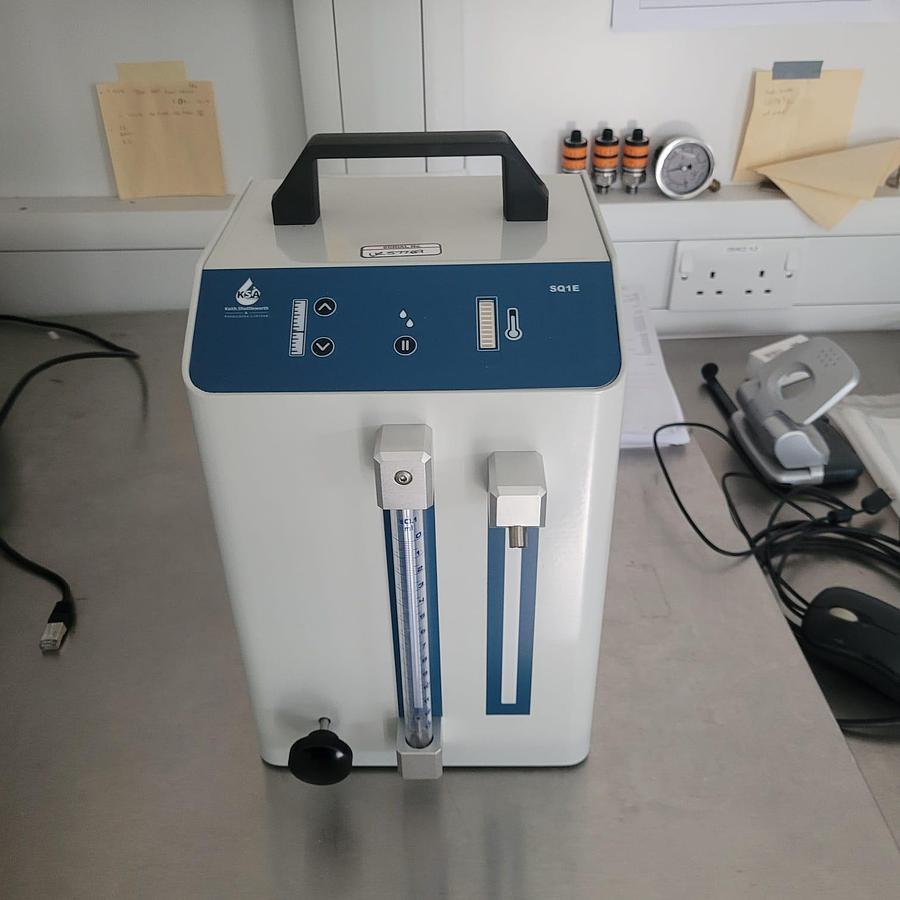

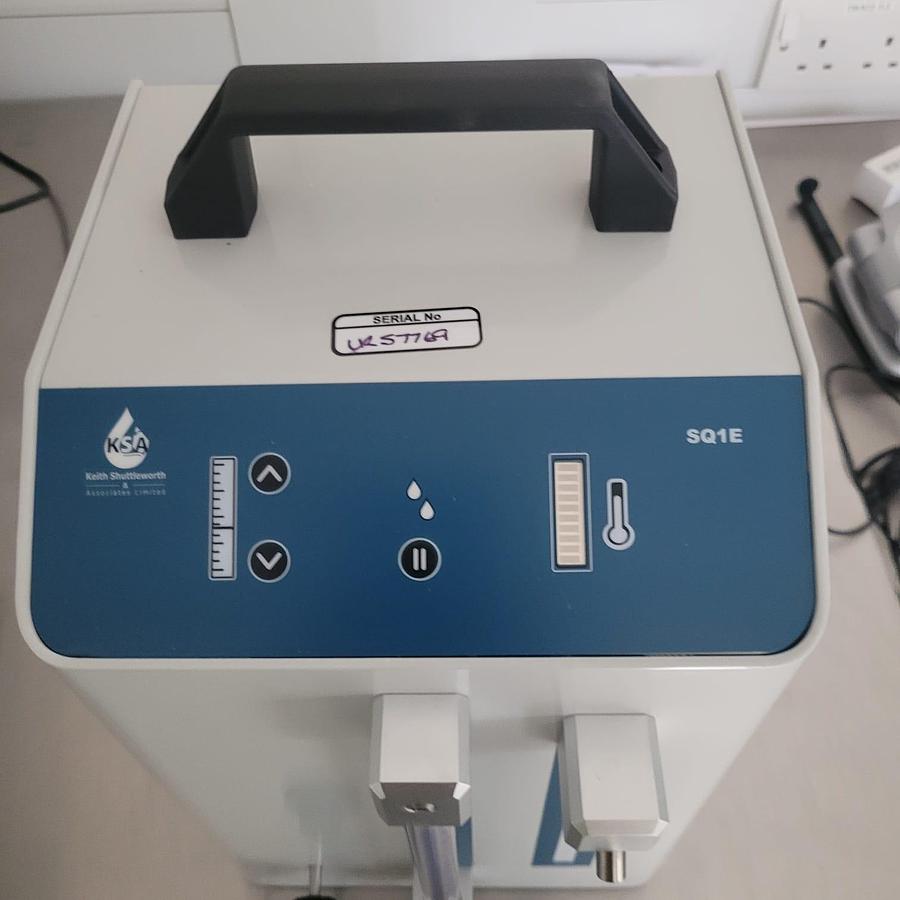

KSA SQ1E Steam Quality Test Kit

This listing is for the KSA SQ1E Steam Quality Test Kit.

The system is in excellent working condition and ready for immediate use.

System Overview

The KSA SQ1E is a portable, air-cooled steam quality testing unit designed for performing Non-Condensable Gas (NCG), Dryness, and Superheat tests in compliance with EN 285 and HTM standards. It provides a complete, self-contained solution for validating clean and pure steam systems used in pharmaceutical, biotechnology, and healthcare facilities.

Unlike traditional systems, the SQ1E uses a built-in electric fan condenser, removing the need for cooling water and allowing tests to be carried out anywhere with minimal setup. The compact and durable design makes it ideal for on-site steam testing, validation, and qualification work.

Main Components

KSA SQ1E Steam Quality Test Unit – fully air-cooled condenser assembly with built-in burette and measuring cylinder for NCG and dryness testing.

Dryness and Superheat Test Assembly – includes test expansion tube, pitot tubes, flask, and temperature probe connections.

Integrated Burette and Measuring Cylinder – illuminated and fitted with push-button zeroing and pause functions for precise readings.

Power Supply – 12 V DC operation for the condenser fan and internal electronics.

Steam Connection Set – includes tri-clamp and hose fittings for connection to clean steam systems.

Portable Case – compact and rugged housing with handle and workspace shelf for field testing.

Operating Manual and Documentation – includes standard test procedures, setup guidance, and result templates.

Key Features

Air-cooled condenser design eliminates the need for external cooling water.

Performs all required steam quality tests: Non-Condensable Gases, Dryness, and Superheat.

Built-in burette and measuring cylinder for accurate, repeatable measurement.

Push-button zeroing, pause function, and backlit illumination for ease of use.

Portable, plug-and-play design ideal for site validation and testing.

Complies fully with EN 285, HTM, and pharmaceutical clean steam standards.

Specifications

Manufacturer: KSA (Keystone Scientific / KSA Pharma)

Model: SQ1E

Type: Steam Quality Test Kit

Power Supply: 12 V DC

Cooling Method: Air-cooled, fan-assisted condenser

Functions: NCG, Dryness, Superheat testing

Operation: Manual/portable

Compliance: EN 285, HTM, AAMI, PDA guidelines

Construction: Stainless steel and aluminium components in rugged portable case
