Perkin Elmer Avio 200 ICP-OES

No longer available

Perkin Elmer Avio 200 ICP-OES

Location:Walton-on-the-Naze, United Kingdom

Description

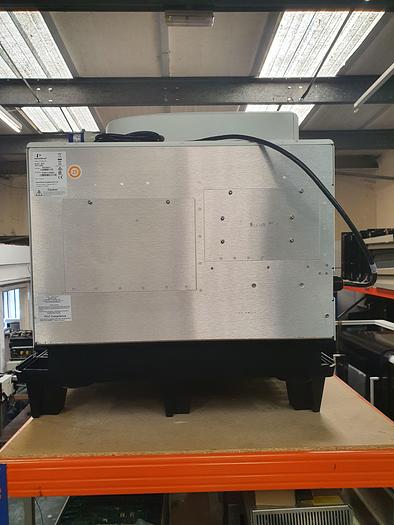

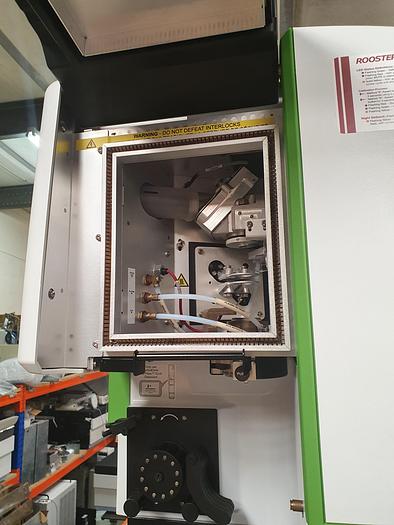

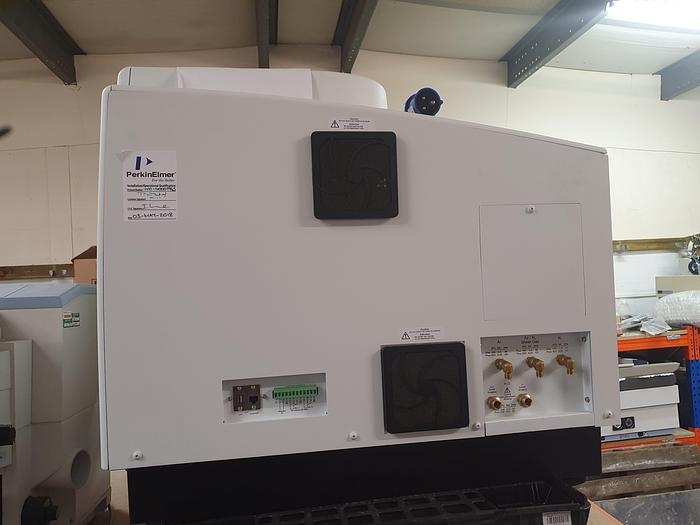

This listing is for a Perkin Elmer Avio 200 ICP-OES


PerkinElmer’s Avio™ 200 is a compact ICP-OES that combines a vertical plasma design with a host of unique hardware features to handle even the most difficult, high-matrix samples without dilution, delivering a whole new level of performance and flexibility to ICP.



Avio’s unique hardware features include:

- RF generator with Flat Plate™ plasma technology generates a robust, matrix-tolerant plasma using half the argon of other systems;

- Patented Dual View capability measures every wavelength with no loss of light or sensitivity;

- Full-wavelength-range CCD array detector measures the wavelength range around the emission line of interest—simultaneously—for superior precision.



The smallest ICP on the market, the Avio 200 offers the most efficient operation, reliable data, and lowest cost of ownership by delivering:

- The lowest argon consumption of any ICP: only 9 L/min, compared to 21 L/min required by other systems

- The fastest ICP startup: spectrometer ready in just 10 minutes from power on

Superior sensitivity and resolution for all elements of interest

- The widest linear range

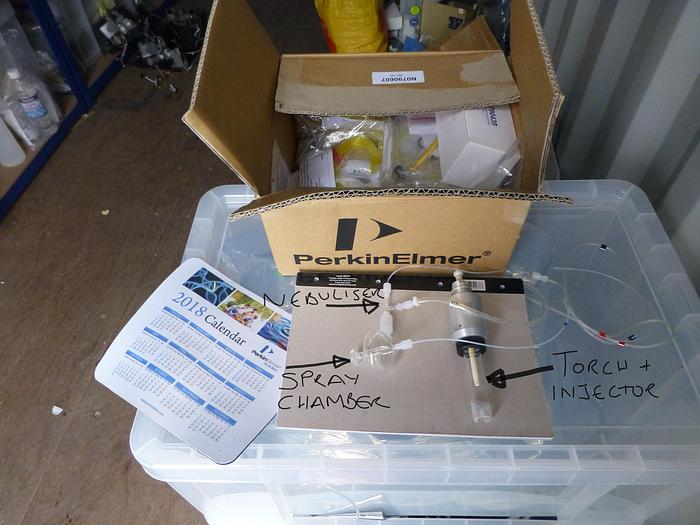

And for added flexibility, the Avio 200 is available in two configurations, so that you can choose the nebulizers and spray chambers best suited for your applications: Scott/Cross Flow or Cyclonic/Meinhard®



Plus, Avio 200’s unprecedented performance comes with unparalleled ease-of-use. Unique hardware features combine with the industry’s most intuitive software to make multi-element measurements as easy as single-element analyses.


Instrument Dimensions

65 x 81 x 76 cm (W x H x D)

65 cm wide (26 in.), 81 cm high (32 in.), and 76cm deep (30 in.).


Weight

132 kg (292 pounds), or 146 kg (322 lbs) with the shipping container.


Power Requirements

200 to 230 V AC ~, 50/60 Hz. Power consumption 2800 VA (maximum)


full instrument load, that has a correctly wired protective earthing system (ground connection) and a separate circuit breaker. Maximum power consumption is 2800 VA. The line power supply must conform with local safety regulations and be checked by a qualified electrician before you connect the instrument to line power.



transients in excess of 50 V peak. If the electrical supply voltage produces large AC line voltage fluctuations, a qualified electrician should install a voltage regulator between the electrical outlet and the instrument.

 .) line power cord that supplies both the spectrometer

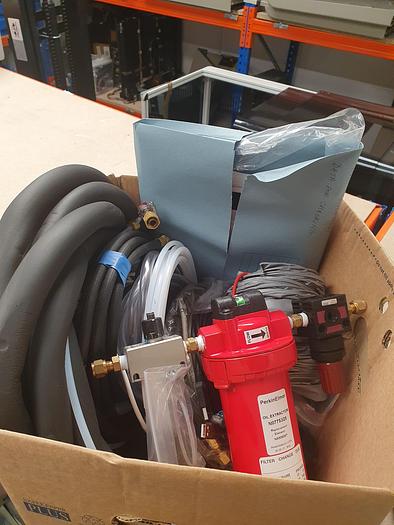

and the RF Generator. The line power supply point must be within 2.5 meters of the rear of the spectrometer. Installation kit will included one flexible hose (Part No. N0691578) and two hose clamps (Part No. 09920044) for connecting to the exhaust. The Avio 200 may be placed on a bench. The main power cable length is 2.4 m (8.0 ft.). Minimum venting flow rate 120 cfm.

Electrical protection Insulation: Class I Pollution degree: 2


Safety/EMC standards

See the Declaration of Conformity. Environmental requirements Altitude in the range 0 m to 2,000 m.

Specifications

ManufacturerPerkin Elmer
ModelAvio 200
ConditionUsed
