VWR VisiScope IT404 Microscope

VWR VisiScope IT404 Microscope

Contact us for price

Available quantity: 1

Walton-on-the-Naze, United Kingdom

orCall +44 (0) 20 8123 1082

Description

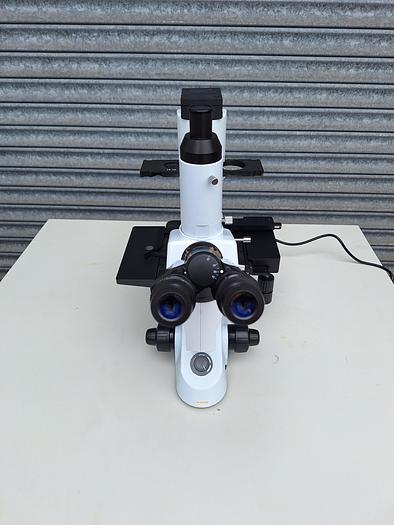

This listing is for a VWR VisiScope IT404 Microscope



VisiScope IT 404 inverted microscope offers a complete solution for your brightfield observations. The IT 404 inverted microscope is equipped with a full set of objectives that covers most standard applications. A mechanical stage is included along with 4 objectives (4x and 40x for brightfield; 10x and 20x for phase contrast).

The light ring of the adjustable phase contrast slider is pre-centered when the microscope leaves the factory. It should therefore need no further adjustment. If a re-centering is needed, it can be performed via the two side bolts. The 4X/10X light ring must be used with 4X and 10X phasecontrast objectives, the 20x/40x light ring with the 20x and40x and the opening is used for bright field.

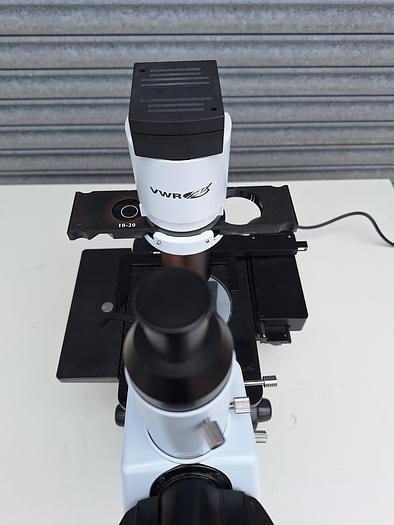

The Moticam 5 is an attachable digital C-mount camera with CMOS-Sensor and it features a 5MP live resolution capability along with:

- Live resolution: 5.0MP (2592x1944)

- Optical calculation: 1/2,5"

- Output: MiniUSB

- Focusable lens: 12mm

- 2 variable diameter eyepiece adapters

- Macrotube for specimens observation

- Motic Images Plus 2.0 for PC and MAC

- Motic 4-dot calibration slide


Features:


- Ergonomic:

Every control is easy to reach and every component has been designed with ease of use in mind. Focusing and specimen movement controls allow the wrists to rest on the bench. Light intensity adjustment is placed very close to the focusing knobs. The specimen stage is fitted with a special glass insert that allows you to see the objectives for immediate identification of the magnification set-up. An ergo head allows compensation for operator height.

- Efficiency:

Plan achromatic, infinity corrected optics, bright 8 W LED illuminator, phase contrastset, holders for specimen slides, flasks, Petri dishes, trinocular head for photo/ video applications. These are the features of IT 404, a powerful, complete and innovative instrument, designed to set a reference standard for routine and advanced tissue culture.

- User comfort:

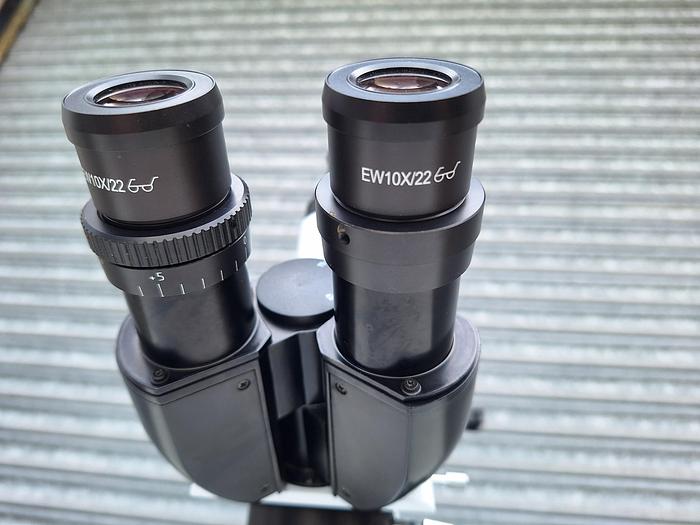

The 22 mm extra widefield optics are pleasant to use minimising operator stress. The special eyepieces are designed for eyeglass wearers.


- Objectives:

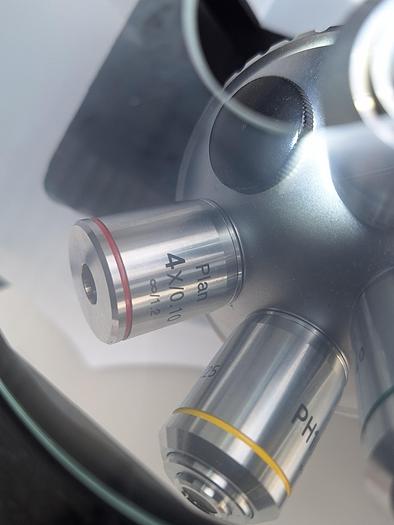

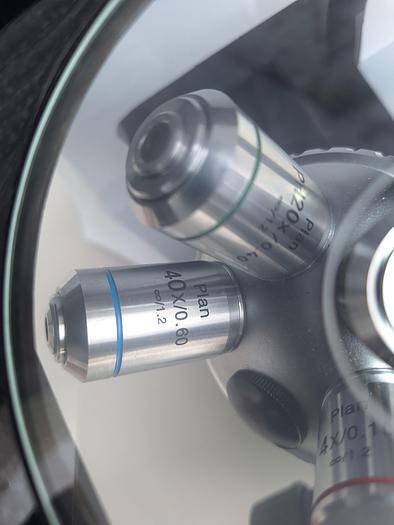

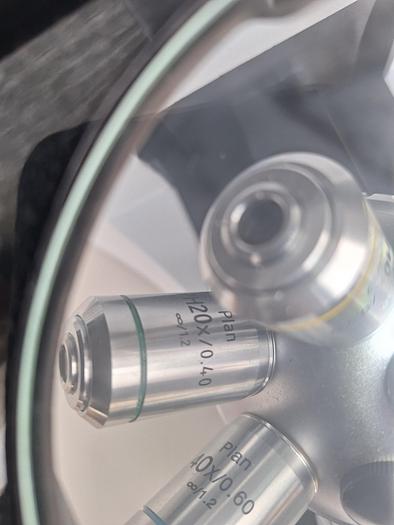

Long working distance (LWD) infinity corrected (IOS) plan achromatic: 4x/0,10 (working distance 18 mm), phase contrast 10x/0,25 (working distance 10 mm), phase contrast 20x/0,40 (working distance 5,1 mm), 40x/0,60 (working distance 2,6 mm), corrected for 1,2 mm cover glass.

Specifications

ManufacturerVWR
ModelVisiScope IT404
ConditionUsed

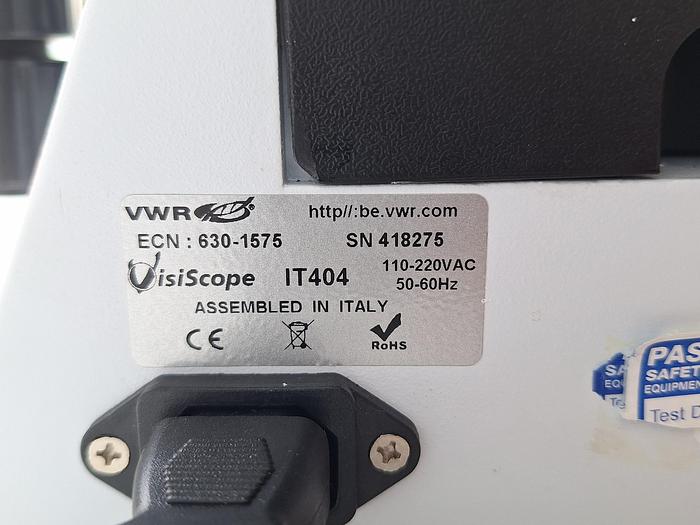

Serial Number418275
