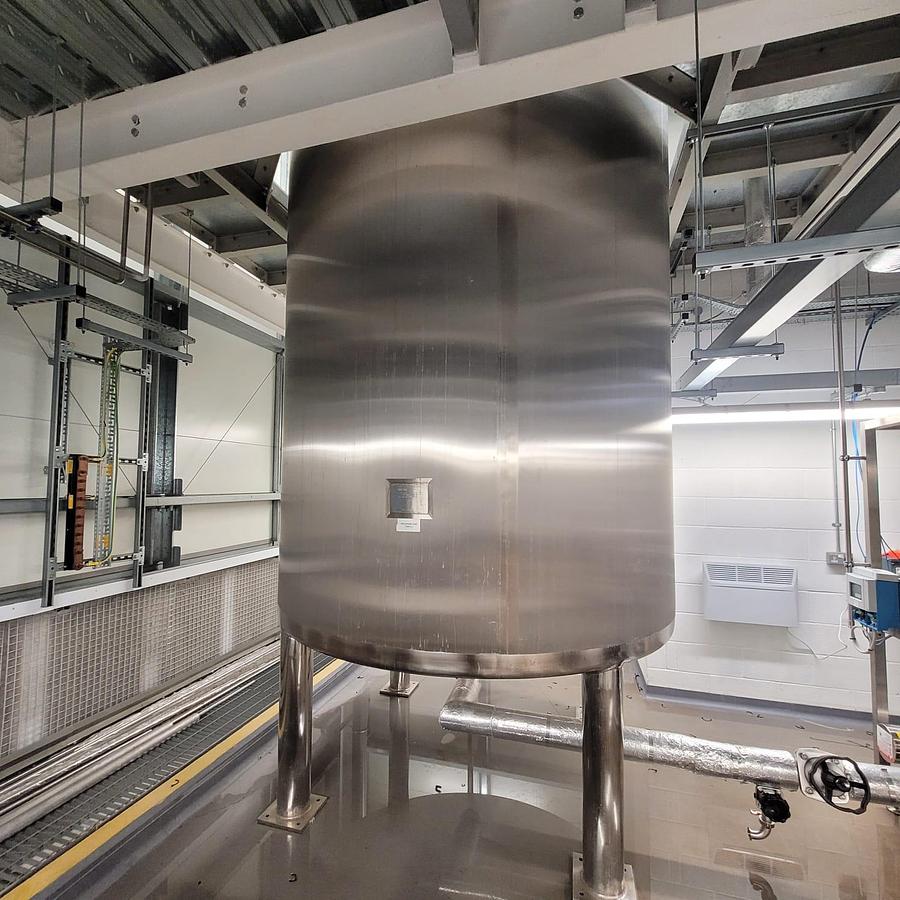

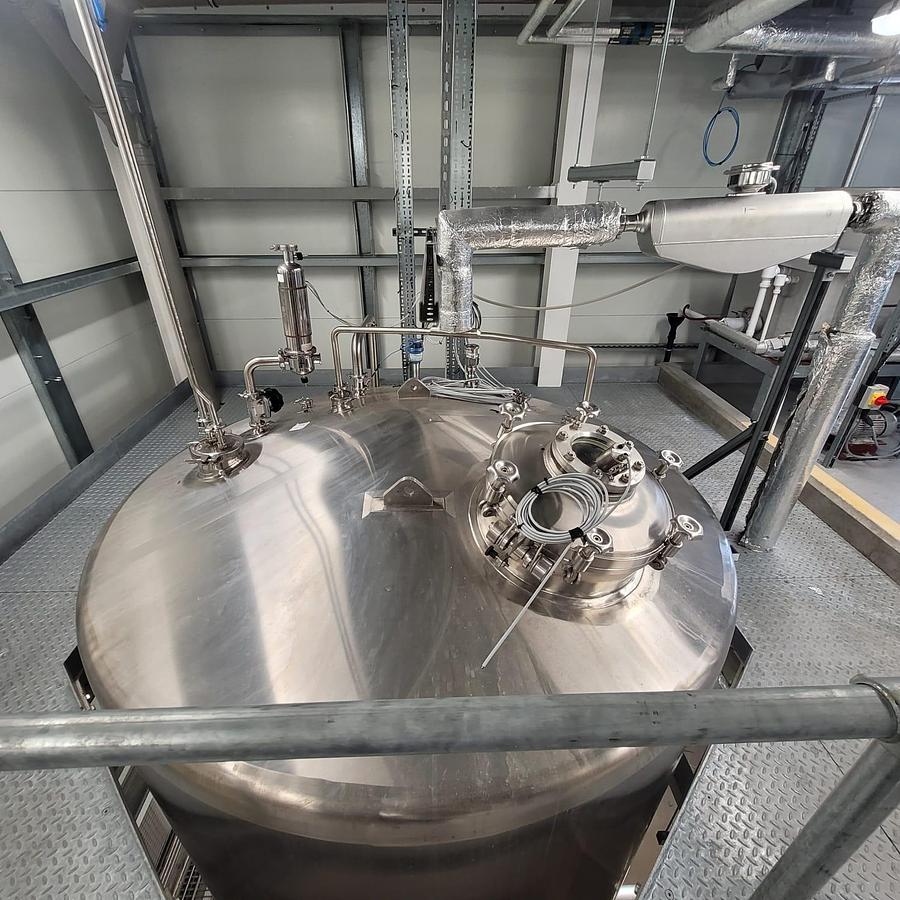

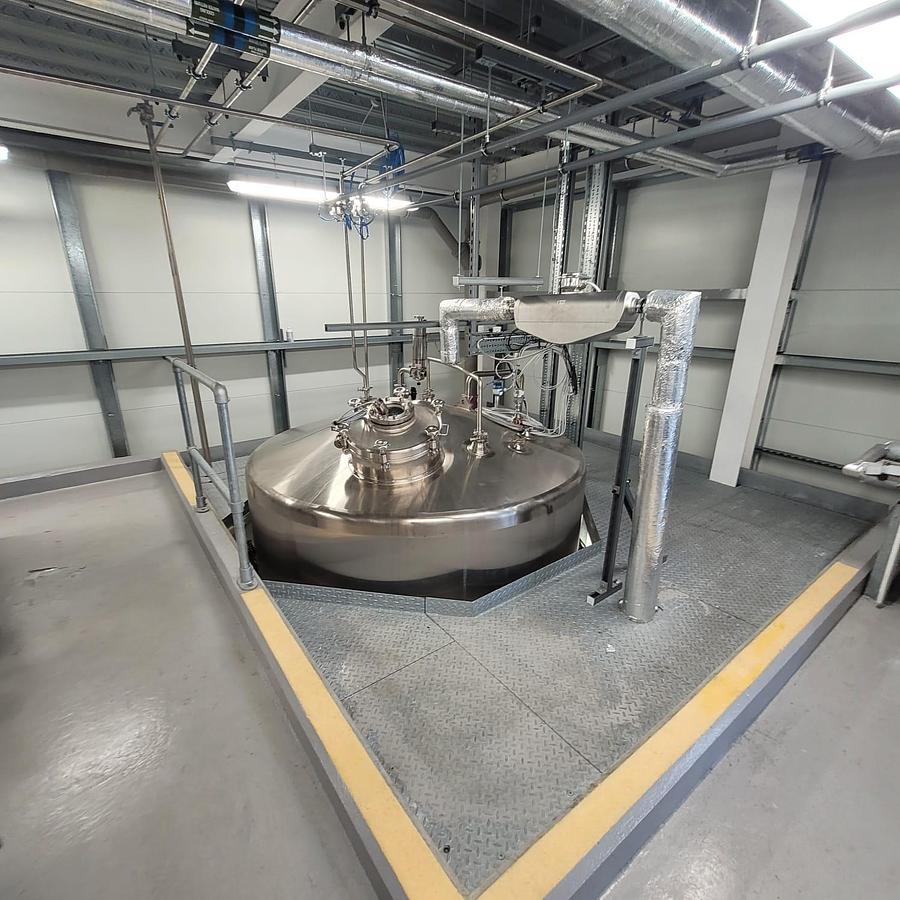

Sinclair Stainless Fabrications Purified Water Storage Tank

This listing is for the Sinclair Stainless Fabrications Purified Water Storage Tank.

The unit is in full working condition and is ready for immediate release

The Sinclair Stainless Fabrications Purified Water Storage Tank is a pharmaceutical-grade vessel engineered for critical water storage in biotech, pharmaceutical, and high-purity industrial environments. Manufactured by Sinclair Stainless Fabrications Ltd, it combines decades of expertise in design and fabrication of pharmaceutical water systems.

Key Features

• Premium Stainless Steel Construction
• 316L stainless steel throughout for corrosion resistance
• Electropolished internal surfaces for cleanability
• Seamless welding and sanitary design
• Full pressure vessel certification and documentation
• Third-party inspection and material traceability

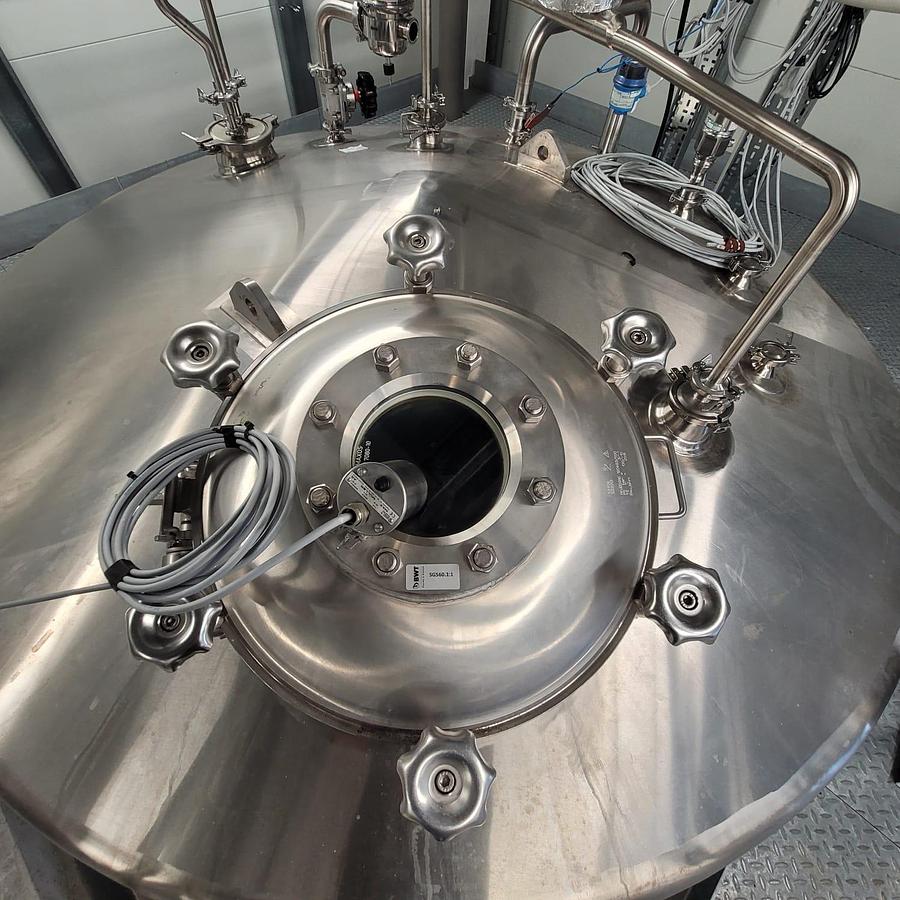

• Sanitary Design Elements
• Tri-clamp connections for easy maintenance
• Multiple ports for instrumentation, sampling, and drainage
• Sloped bottom for complete drainage
• CIP and SIP compatible
• Professional Instrumentation
• Connections for level, temperature, and pressure monitoring
• Sight glass ports for visual inspection
• Sample ports with sanitary valves
• Vent connections with sterile filtration

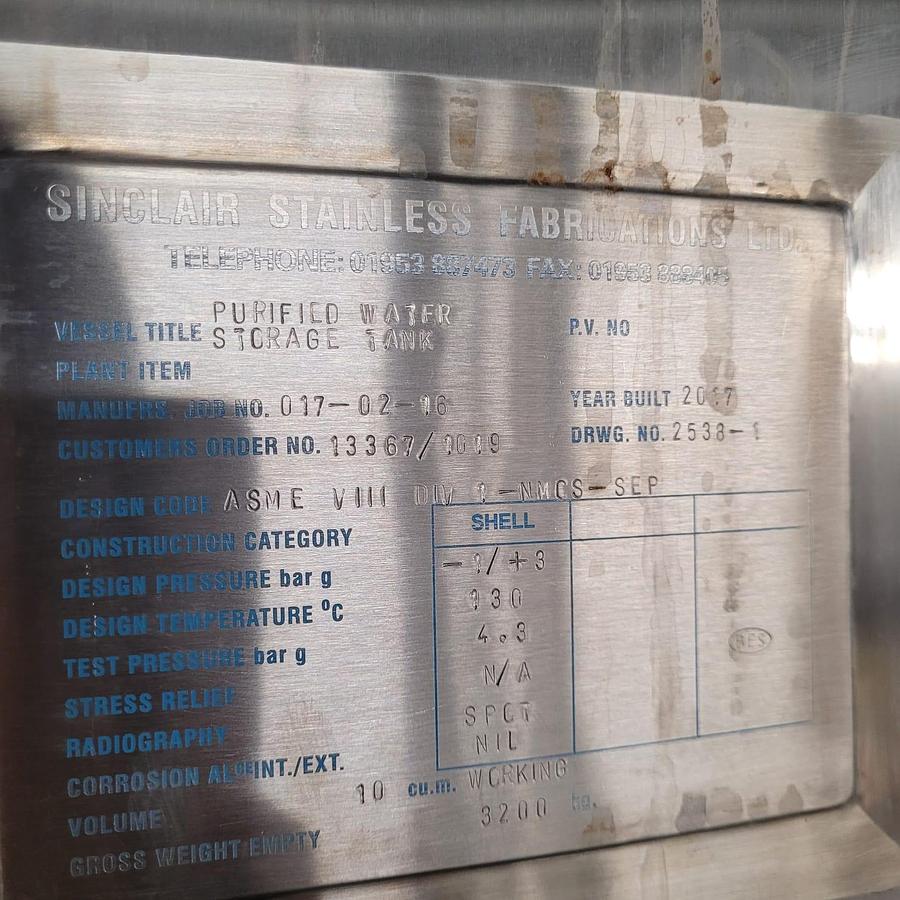

Technical Specifications

• Working volume: 10 m³ (10,000 L)
• Design pressure: -1/+3 bar
• Design temperature: 130 °C
• Test pressure: 4.3 bar
• Gross weight (empty): 3,200 kg
• 316L stainless steel with electropolished surfaces
• Tri-clamp fittings 1.5"–4" as required
• Hydrostatic testing and full documentation including material and welding certificates

Applications

• Pharmaceutical Manufacturing: PW/WFI storage, buffer/media prep, API processes
• Biotechnology: Cell culture media, fermentation water, downstream systems
• Food & Beverage: Process water, ingredient prep, CIP solution storage
• Research Facilities: High-purity water storage, pilot plants, lab support
